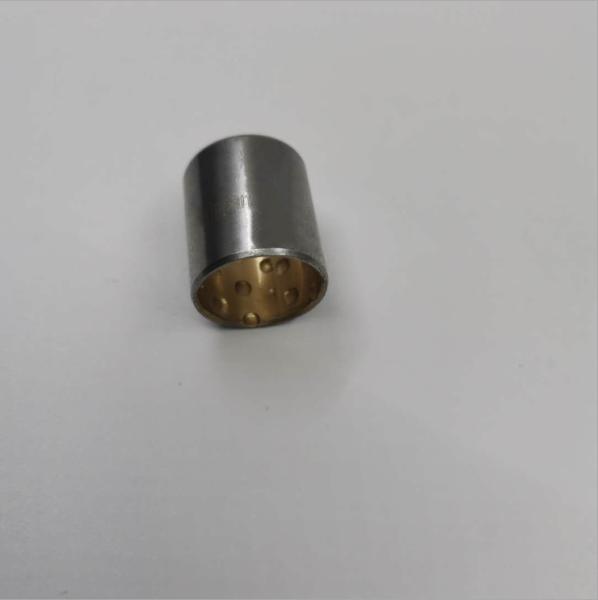

Tin Bronze Lead Alloy Bi Metal Bearings With Antifrication Overlay

Ask Lasest Price
Brand Name :	TOB Bimetal Bearings
Certification :	Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4...
Price :	negotiated
Payment Terms :	T/T
Supply Ability :	negotiated
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

Tin Bronze Lead Alloy Bi Metal Bearings With Antifrication Overlay

Bimetal Bushing 800 Throttle Lever & Valve Bimetal Bearing Bushes Tin Bronze Lead Alloy With Antifrication Overlay

Throttle Lever & Valve Bimetal Bearing Bushes Tin Bronze Lead Alloy With Antifrication Overlay

Bimetallic sliding bearings are designed and made in China and can be customized to meet specific indentation and shape requirements.Steel Backed Bimetal or Trimetal Composition Throttle Lever & Valve Shaft Bimetal Bushings Tin Bronze Lead Alloy With Antifrication Overlay
Throttle valve is a valve that controls fluid flow by changing the throttle section or length.The throttle valve and one-way valve parallel can be combined into a one-way throttle valve.
bimetal bushing is backed with high quality low carbon steel with tin-lead-bronze alloy(CuSn10Pb10)sintered on its surface . It has high fatigue strength, load capacity and impact strength. The bimetal bushing, and save lot of material, which make the product cost performace higher.

Component is introduced

CuPb10Sn10
Pb(%)	Fe(%)	Ni(%)	Zn(%)	Cu(%)
8.0-11.0	≦0.25	≦1.5	≦2.0	78.0-87.0

Steel + Lead Bronze Powder

Steel shell backed with a lead bronze lining bearing material for oil lubricated applications.
Bimetal Bushings has high load capacity and good fatigue properties.

Maximum dynamic load		140P N/mm²	MAX Temperature°C	Grease lubrication	150°C
Maximum linear velocity	Grease lubrication	2.5Vm/s	MAX Temperature°C	Fluid lubrication	——
MAX PV		2.8N/mm². m/s	Match the diameter of axle	HRC	≥ 53
μ		0.05~0.15	Match the diameter of axle	Ra	0.32~0.63
Maximum linear velocity	Fluid lubrication	——	Alloy layer hardness		80~120
MAX PV		——	Coefficient of thermal conductivity		47W/mk
μ		——	Linear expansion coefficient (axial)		18×10-6/K

Bimetal Bearing Bushes

Wrapped composite sliding bearing, Copper-plated or tin-plated steel/bronze, DIN 1494 / ISO 3547, Maintenance-free, With lubrication pockets
TECHNICAL DETAILS
Specific load capacity static	≤ 250 [N/mm2]	Temperature strain	- 40 [°C] to + 250 [°C]
Specific load capacity dynamic	≤ 140 [N/mm2]
Sliding speed	≤ 2.5 [m/s]	Max. PV-value	2.8 [N/mm² x m/s]
Friction value	0.04 [µ] to 0.12 [µ]	Percentage contact area	> 75 [%]
MATERIALS
Support material	Steel copper-plated or tin-plated	Sliding layer	CuPb10Sn10
TOLERANCE DETAILS
Housing Ø	H7	Shaft tolerance	f7 to h8
Bushing inner-Ø after mounting	H9
SHAFT MATERIAL
Steel, hardened or untempered
Surface roughness ≤ Ra 0.8
PROPERTIES
For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.
RANGE OF APPLICATION
Track rollers, construction machines, crane construction, agricultural machines (impact loading)
MAINTENANCE
It is a low-maintenance bushing material. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory.
MOUNTING ADVISE
Housing	Mounting bevel min. 1.5 mm x 15-45°
Shaft	Mounting bevel 5 mm x 15°, edges rounded
The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting.
Gluing	Adhesive should not contact the sliding surface!

Application

it is widely used in throttle valve ,shaft,throttle lever , hydraulic motors, agricultural machinery etc.

Structure

1.Sintered bronze CuSn10Pb10: God wear resistance and excellent load carrying capacity.
2.Steel backing:Setting the foundation of the bushings,the steel back provides exceptional stability, load carrying and heat dissipation characteristics.

Why did you choose the viiplus bearings

TOP BEARING Is A Professional Manufacturer Of Bimetal Bushing Series Plain Bearings And Has Developed And Manufactured Self-Lubricating Bearings Of Products.Provide all types of bimteal bushing for customers!
TOP BEARING In order to facilitate the customer to consult the company's product catalog data, the electronic size album of each model product was made to facilitate the customer's download at any time, thus greatly improving the tracking efficiency of both parties.
