SOB Series SANKYO Standard Graphite Sleeve Bearings

    Buy cheap SOB Series SANKYO Standard Graphite Sleeve Bearings from wholesalers

    Buy cheap SOB Series SANKYO Standard Graphite Sleeve Bearings from wholesalers
    • Buy cheap SOB Series SANKYO Standard Graphite Sleeve Bearings from wholesalers
    • Buy cheap SOB Series SANKYO Standard Graphite Sleeve Bearings from wholesalers
    • Buy cheap SOB Series SANKYO Standard Graphite Sleeve Bearings from wholesalers

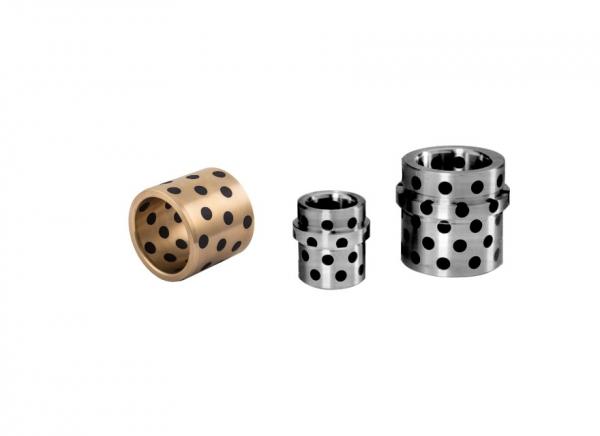

    SOB Series SANKYO Standard Graphite Sleeve Bearings

    Ask Lasest Price
    Brand Name : TOB Cast Bronze Bearing
    Certification : SEA430B,C86300,DIN1709,FIBRO
    Price : negotiated
    Payment Terms : T/T, Western Union
    Supply Ability : CNC Bronze Bearings Online • Custom Bushings Manufacturers • Sliding Bearings Suppliers
    Delivery Time : negotiated
    • Product Details
    • Company Profile

    SOB Series SANKYO Standard Graphite Sleeve Bearings

    Tuleje SOB Series brąz z grafitem,Tuleje ślizgowe i tarcze prowadzące SANKYOW ofercie posiadamy szeroką gamę tulei prowadzących oraz tarczy ślizgowych.SIMILAR SOB,SOBF,SOBW,SOBB,SOST,SOSB

    Technical Data

    item ID OD L F R
    BRONZE GRAPHITE BSUHING 8-12-8 8 12 8 0,5 0,5
    BRONZE GRAPHITE BSUHING 8-12-10 8 12 10 0,5 0,5
    BRONZE GRAPHITE BSUHING 8-12-12 8 12 12 0,5 0,5
    BRONZE GRAPHITE BSUHING 8-12-15 8 12 15 0,5 0,5
    BRONZE GRAPHITE BSUHING 10-14-8 10 14 8 0,5 0,5
    BRONZE GRAPHITE BSUHING 10-14-10 10 14 10 0,5 0,5
    BRONZE GRAPHITE BSUHING 10-14-12 10 14 12 0,5 0,5
    BRONZE GRAPHITE BSUHING 10-14-15 10 14 15 0,5 0,5
    BRONZE GRAPHITE BSUHING 10-14-20 10 14 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 12-18-10 12 18 10 0,5 0,5
    BRONZE GRAPHITE BSUHING 12-18-12 12 18 12 0,5 0,5
    BRONZE GRAPHITE BSUHING 12-18-15 12 18 15 0,5 0,5
    BRONZE GRAPHITE BSUHING 12-18-16 12 18 16 0,5 0,5
    BRONZE GRAPHITE BSUHING 12-18-20 12 18 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 12-18-25 12 18 25 0,5 0,5
    BRONZE GRAPHITE BSUHING 12-18-30 12 18 30 0,5 0,5
    BRONZE GRAPHITE BSUHING 13-19-10 13 19 10 0,5 0,5
    BRONZE GRAPHITE BSUHING 13-19-15 13 19 15 0,5 0,5
    BRONZE GRAPHITE BSUHING 13-19-16 13 19 16 0,5 0,5
    BRONZE GRAPHITE BSUHING 13-19-20 13 19 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 14-20-10 14 20 10 0,5 0,5
    BRONZE GRAPHITE BSUHING 14-20-12 14 20 12 0,5 0,5
    BRONZE GRAPHITE BSUHING 14-20-15 14 20 15 0,5 0,5
    BRONZE GRAPHITE BSUHING 14-20-20 14 20 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 14-20-25 14 20 25 0,5 0,5
    BRONZE GRAPHITE BSUHING 14-20-30 14 20 30 0,5 0,5
    BRONZE GRAPHITE BSUHING 15-21-10 15 21 10 0,5 0,5
    BRONZE GRAPHITE BSUHING 15-21-12 15 21 12 0,5 0,5
    BRONZE GRAPHITE BSUHING 15-21-15 15 21 15 0,5 0,5
    BRONZE GRAPHITE BSUHING 15-21-16 15 21 16 0,5 0,5
    BRONZE GRAPHITE BSUHING 15-21-20 15 21 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 15-21-25 15 21 25 0,5 0,5
    BRONZE GRAPHITE BSUHING 15-21-30 15 21 30 0,5 0,5
    BRONZE GRAPHITE BSUHING 16-22-10 16 22 10 0,5 0,5
    BRONZE GRAPHITE BSUHING 16-22-12 16 22 12 0,5 0,5
    BRONZE GRAPHITE BSUHING 16-22-15 16 22 15 0,5 0,5
    BRONZE GRAPHITE BSUHING 16-22-16 16 22 16 0,5 0,5
    BRONZE GRAPHITE BSUHING 16-22-20 16 22 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 16-22-25 16 22 25 0,5 0,5
    BRONZE GRAPHITE BSUHING 16-22-30 16 22 30 0,5 0,5
    BRONZE GRAPHITE BSUHING 16-22-35 16 22 35 0,5 0,5
    BRONZE GRAPHITE BSUHING 16-22-40 16 22 40 0,5 0,5
    BRONZE GRAPHITE BSUHING 18-24-15 18 24 15 0,5 0,5
    BRONZE GRAPHITE BSUHING 18-24-16 18 24 16 0,5 0,5
    BRONZE GRAPHITE BSUHING 18-24-20 18 24 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 18-24-25 18 24 25 0,5 0,5
    BRONZE GRAPHITE BSUHING 18-24-30 18 24 30 0,5 0,5
    BRONZE GRAPHITE BSUHING 18-24-35 18 24 35 0,5 0,5
    BRONZE GRAPHITE BSUHING 18-24-40 18 24 40 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-28-15 20 28 15 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-28-16 20 28 16 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-28-20 20 28 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-28-25 20 28 25 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-28-30 20 28 30 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-28-35 20 28 35 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-28-40 20 28 40 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-28-50 20 28 50 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-30-16 20 30 16 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-30-20 20 30 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-30-25 20 30 25 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-30-30 20 30 30 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-30-35 20 30 35 0,5 0,5
    BRONZE GRAPHITE BSUHING 20-30-40 20 30 40 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-33-16 25 33 16 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-33-20 25 33 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-33-25 25 33 25 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-33-30 25 33 30 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-33-35 25 33 35 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-33-40 25 33 40 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-33-50 25 33 50 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-33-60 25 33 60 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-35-16 25 35 16 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-35-20 25 35 20 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-35-25 25 35 25 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-35-30 25 35 30 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-35-35 25 35 35 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-35-40 25 35 40 0,5 0,5
    BRONZE GRAPHITE BSUHING 25-35-50 25 35 50 0,5 0,5
    BRONZE GRAPHITE BSUHING 28-38-30 28 38 30 0,5 0,5
    BRONZE GRAPHITE BSUHING 28-38-40 28 38 40 0,5 0,5
    BRONZE GRAPHITE BSUHING 30-38-20 30 38 20 1 1
    BRONZE GRAPHITE BSUHING 30-38-25 30 38 25 1 1
    BRONZE GRAPHITE BSUHING 30-38-30 30 38 30 1 1
    BRONZE GRAPHITE BSUHING 30-38-35 30 38 35 1 1
    BRONZE GRAPHITE BSUHING 30-38-40 30 38 40 1 1
    BRONZE GRAPHITE BSUHING 30-38-50 30 38 50 1 1
    BRONZE GRAPHITE BSUHING 30-38-60 30 38 60 1 1
    BRONZE GRAPHITE BSUHING 30-40-20 30 40 20 1 1
    BRONZE GRAPHITE BSUHING 30-40-25 30 40 25 1 1
    BRONZE GRAPHITE BSUHING 30-40-30 30 40 30 1 1
    BRONZE GRAPHITE BSUHING 30-40-35 30 40 35 1 1
    BRONZE GRAPHITE BSUHING 30-40-40 30 40 40 1 1
    BRONZE GRAPHITE BSUHING 30-40-50 30 40 50 1 1
    BRONZE GRAPHITE BSUHING 30-40-60 30 40 60 1 1
    BRONZE GRAPHITE BSUHING 31,5-40-30 31,5 40 30 1 1
    BRONZE GRAPHITE BSUHING 31,5-40-40 31,5 40 40 1 1
    BRONZE GRAPHITE BSUHING 32-42-30 32 42 30 1 1
    BRONZE GRAPHITE BSUHING 32-42-40 32 42 40 1 1
    BRONZE GRAPHITE BSUHING 35-44-25 35 44 25 1 1
    BRONZE GRAPHITE BSUHING 35-44-30 35 44 30 1 1
    BRONZE GRAPHITE BSUHING 35-44-35 35 44 35 1 1
    BRONZE GRAPHITE BSUHING 35-44-40 35 44 40 1 1
    BRONZE GRAPHITE BSUHING 35-44-50 35 44 50 1 1
    BRONZE GRAPHITE BSUHING 35-44-60 35 44 60 1 1
    BRONZE GRAPHITE BSUHING 35-45-20 35 45 20 1 1
    BRONZE GRAPHITE BSUHING 35-45-25 35 45 25 1 1
    BRONZE GRAPHITE BSUHING 35-45-30 35 45 30 1 1
    BRONZE GRAPHITE BSUHING 35-45-35 35 45 35 1 1
    BRONZE GRAPHITE BSUHING 35-45-40 35 45 40 1 1
    BRONZE GRAPHITE BSUHING 35-45-50 35 45 50 1 1
    BRONZE GRAPHITE BSUHING 35-45-60 35 45 60 1 1
    BRONZE GRAPHITE BSUHING 38-48-30 38 48 30 1 1
    BRONZE GRAPHITE BSUHING 38-48-40 38 48 40 1 1
    BRONZE GRAPHITE BSUHING 40-50-20 40 50 20 1 1
    BRONZE GRAPHITE BSUHING 40-50-25 40 50 25 1 1
    BRONZE GRAPHITE BSUHING 40-50-30 40 50 30 1 1
    BRONZE GRAPHITE BSUHING 40-50-35 40 50 35 1 1
    BRONZE GRAPHITE BSUHING 40-50-40 40 50 40 1 1
    BRONZE GRAPHITE BSUHING 40-50-50 40 50 50 1 1
    BRONZE GRAPHITE BSUHING 40-50-60 40 50 60 1 1
    BRONZE GRAPHITE BSUHING 40-50-70 40 50 70 1 1
    BRONZE GRAPHITE BSUHING 40-50-80 40 50 80 1 1
    BRONZE GRAPHITE BSUHING 40-55-25 40 55 25 1 1
    BRONZE GRAPHITE BSUHING 40-55-30 40 55 30 1 1
    BRONZE GRAPHITE BSUHING 40-55-35 40 55 35 1 1
    BRONZE GRAPHITE BSUHING 40-55-40 40 55 40 1 1
    BRONZE GRAPHITE BSUHING 40-55-50 40 55 50 1 1
    BRONZE GRAPHITE BSUHING 40-55-60 40 55 60 1 1
    BRONZE GRAPHITE BSUHING 45-55-30 45 55 30 1 1
    BRONZE GRAPHITE BSUHING 45-55-35 45 55 35 1 1
    BRONZE GRAPHITE BSUHING 45-55-40 45 55 40 1 1
    BRONZE GRAPHITE BSUHING 45-55-50 45 55 50 1 1
    BRONZE GRAPHITE BSUHING 45-55-60 45 55 60 1 1
    BRONZE GRAPHITE BSUHING 45-56-30 45 56 30 1 1
    BRONZE GRAPHITE BSUHING 45-56-35 45 56 35 1 1
    BRONZE GRAPHITE BSUHING 45-56-40 45 56 40 1 1
    BRONZE GRAPHITE BSUHING 45-56-50 45 56 50 1 1
    BRONZE GRAPHITE BSUHING 45-56-60 45 56 60 1 1
    BRONZE GRAPHITE BSUHING 45-60-30 45 60 30 1 1
    BRONZE GRAPHITE BSUHING 45-60-35 45 60 35 1 1
    BRONZE GRAPHITE BSUHING 45-60-40 45 60 40 1 1
    BRONZE GRAPHITE BSUHING 45-60-50 45 60 50 1 1
    BRONZE GRAPHITE BSUHING 45-60-60 45 60 60 1 1
    BRONZE GRAPHITE BSUHING 45-60-70 45 60 70 1 1
    BRONZE GRAPHITE BSUHING 45-60-80 45 60 80 1 1
    BRONZE GRAPHITE BSUHING 50-60-20 50 60 30 1 1
    BRONZE GRAPHITE BSUHING 50-60-25 50 60 35 1 1
    BRONZE GRAPHITE BSUHING 50-60-40 50 60 30 1 1
    BRONZE GRAPHITE BSUHING 50-60-50 50 60 35 1 1
    BRONZE GRAPHITE BSUHING 50-60-60 50 60 60 1 1
    BRONZE GRAPHITE BSUHING 50-60-70 50 60 70 1 1
    BRONZE GRAPHITE BSUHING 50-60-80 50 60 60 1 1
    BRONZE GRAPHITE BSUHING 50-62-30 50 62 70 1 1
    BRONZE GRAPHITE BSUHING 50-62-35 50 62 35 1 1
    BRONZE GRAPHITE BSUHING 50-62-40 50 62 30 1 1
    BRONZE GRAPHITE BSUHING 50-62-50 50 62 35 1 1
    BRONZE GRAPHITE BSUHING 50-62-60 50 62 60 1 1
    BRONZE GRAPHITE BSUHING 50-62-70 50 62 70 1 1
    BRONZE GRAPHITE BSUHING 50-65-30 50 65 60 1 1
    BRONZE GRAPHITE BSUHING 50-65-40 50 65 70 1 1
    BRONZE GRAPHITE BSUHING 50-65-50 50 65 30 1 1
    BRONZE GRAPHITE BSUHING 50-65-60 50 65 60 1 1
    BRONZE GRAPHITE BSUHING 50-65-70 50 65 70 1 1
    BRONZE GRAPHITE BSUHING 50-65-80 50 65 60 1 1
    BRONZE GRAPHITE BSUHING 50-65-100 50 65 70 1 1
    BRONZE GRAPHITE BSUHING 55-70-40 55 65 80 1 1
    BRONZE GRAPHITE BSUHING 55-70-50 55 65 100 1 1
    BRONZE GRAPHITE BSUHING 55-70-60 55 70 60 1 1
    BRONZE GRAPHITE BSUHING 55-70-70 55 70 70 1 1
    BRONZE GRAPHITE BSUHING 60-74-30 55 74 60 1 1
    BRONZE GRAPHITE BSUHING 60-74-35 55 74 70 1 1
    BRONZE GRAPHITE BSUHING 60-74-40 60 74 30 1 1
    BRONZE GRAPHITE BSUHING 60-74-50 60 74 35 1 1
    BRONZE GRAPHITE BSUHING 60-74-60 60 74 60 1 1
    BRONZE GRAPHITE BSUHING 60-74-70 60 74 70 1 1
    BRONZE GRAPHITE BSUHING 60-74-80 60 74 60 1 1
    BRONZE GRAPHITE BSUHING 60-75-30 60 74 70 1 1
    BRONZE GRAPHITE BSUHING 60-75-35 60 74 35 1 1
    BRONZE GRAPHITE BSUHING 60-75-40 60 75 30 1 1
    BRONZE GRAPHITE BSUHING 60-75-50 60 75 35 1 1
    BRONZE GRAPHITE BSUHING 60-75-60 60 75 60 1 1
    BRONZE GRAPHITE BSUHING 60-75-70 60 75 70 1 1
    BRONZE GRAPHITE BSUHING 60-75-80 60 75 60 1 1
    BRONZE GRAPHITE BSUHING 60-75-100 60 75 70 1 1
    BRONZE GRAPHITE BSUHING 63-75-60 60 75 60 1 1
    BRONZE GRAPHITE BSUHING 63-75-70 60 75 70 1 1
    BRONZE GRAPHITE BSUHING 63-75-80 63 75 60 1 1
    BRONZE GRAPHITE BSUHING 65-80-50 65 75 70 1 1
    BRONZE GRAPHITE BSUHING 65-80-60 65 75 60 1 1
    BRONZE GRAPHITE BSUHING 65-80-70 65 80 70 1 1
    BRONZE GRAPHITE BSUHING 65-80-80 65 80 60 1 1
    BRONZE GRAPHITE BSUHING 70-85-35 70 85 70 1 1
    BRONZE GRAPHITE BSUHING 70-85-40 70 85 80 1 1
    BRONZE GRAPHITE BSUHING 70-85-50 70 85 35 1 1
    BRONZE GRAPHITE BSUHING 70-85-60 70 85 60 1 1
    BRONZE GRAPHITE BSUHING 70-85-70 70 85 70 1 1
    BRONZE GRAPHITE BSUHING 70-85-80 70 85 60 1 1
    BRONZE GRAPHITE BSUHING 70-85-100 70 85 70 1 1
    BRONZE GRAPHITE BSUHING 70-90-50 70 85 80 1 1
    BRONZE GRAPHITE BSUHING 70-90-60 70 85 60 1 1
    BRONZE GRAPHITE BSUHING 70-90-70 70 90 70 1 1
    BRONZE GRAPHITE BSUHING 70-90-80 70 90 60 1 1
    BRONZE GRAPHITE BSUHING 75-90-60 75 90 70 1 1
    BRONZE GRAPHITE BSUHING 75-90-70 75 90 70 1 1
    BRONZE GRAPHITE BSUHING 75-90-80 75 90 60 1 1
    BRONZE GRAPHITE BSUHING 75-90-100 75 90 70 1 1
    BRONZE GRAPHITE BSUHING 75-95-60 75 95 60 1 1
    BRONZE GRAPHITE BSUHING 75-95-70 75 95 70 1 1
    BRONZE GRAPHITE BSUHING 75-95-80 75 95 60 1 1
    BRONZE GRAPHITE BSUHING 75-95-100 75 95 70 1 1
    BRONZE GRAPHITE BSUHING 80-96-40 75 96 80 1 1
    BRONZE GRAPHITE BSUHING 80-96-50 75 96 100 1 1
    BRONZE GRAPHITE BSUHING 80-96-60 80 96 60 1 1
    BRONZE GRAPHITE BSUHING 80-96-70 80 96 70 1 1
    BRONZE GRAPHITE BSUHING 80-96-80 80 96 60 1 1
    BRONZE GRAPHITE BSUHING 80-96-100 80 96 70 1 1
    BRONZE GRAPHITE BSUHING 80-96-120 80 96 120 1 1
    BRONZE GRAPHITE BSUHING 80-100-40 80 96 100 1 1
    BRONZE GRAPHITE BSUHING 80-100-50 80 96 120 1 1
    BRONZE GRAPHITE BSUHING 80-100-60 80 100 60 1 1
    BRONZE GRAPHITE BSUHING 80-100-70 80 100 70 1 1
    BRONZE GRAPHITE BSUHING 80-100-80 80 100 60 1 1
    BRONZE GRAPHITE BSUHING 80-100-100 80 100 70 1 1
    BRONZE GRAPHITE BSUHING 80-100-120 80 100 120 1 1
    BRONZE GRAPHITE BSUHING 80-100-140 80 100 140 1 1
    BRONZE GRAPHITE BSUHING 85-100-80 85 100 120 1 1
    BRONZE GRAPHITE BSUHING 90-110-60 90 110 140 1 1
    BRONZE GRAPHITE BSUHING 90-110-70 90 110 70 1 1
    BRONZE GRAPHITE BSUHING 90-110-80 90 110 60 1 1
    BRONZE GRAPHITE BSUHING 90-110-100 90 110 70 1 1
    BRONZE GRAPHITE BSUHING 90-110-120 90 110 120 1 1
    BRONZE GRAPHITE BSUHING 100-120-60 90 120 60 1,5 1,5
    BRONZE GRAPHITE BSUHING 100-120-70 90 120 70 1,5 1,5
    BRONZE GRAPHITE BSUHING 100-120-80 100 120 60 1,5 1,5
    BRONZE GRAPHITE BSUHING 100-120-100 100 120 70 1,5 1,5
    BRONZE GRAPHITE BSUHING 100-120-120 100 120 120 1,5 1,5
    BRONZE GRAPHITE BSUHING 100-120-140 100 120 140 1,5 1,5
    BRONZE GRAPHITE BSUHING 110-130-80 110 130 120 1,5 1,5
    BRONZE GRAPHITE BSUHING 110-130-100 110 130 140 1,5 1,5
    BRONZE GRAPHITE BSUHING 110-130-120 110 130 120 1,5 1,5
    BRONZE GRAPHITE BSUHING 120-140-80 120 140 100 1,5 1,5
    BRONZE GRAPHITE BSUHING 120-140-100 120 140 120 1,5 1,5
    BRONZE GRAPHITE BSUHING 120-140-120 120 140 120 1,5 1,5
    BRONZE GRAPHITE BSUHING 120-140-140 120 140 140 1,5 1,5
    BRONZE GRAPHITE BSUHING 125-145-100 120 145 120 1,5 1,5
    BRONZE GRAPHITE BSUHING 125-145-120 120 145 140 1,5 1,5
    BRONZE GRAPHITE BSUHING 130-150-100 130 145 100 1,5 1,5
    BRONZE GRAPHITE BSUHING 130-150-130 130 145 130 1,5 1,5
    BRONZE GRAPHITE BSUHING 140-160-100 140 150 100 1,5 1,5
    BRONZE GRAPHITE BSUHING 140-160-140 140 150 130 1,5 1,5
    BRONZE GRAPHITE BSUHING 150-170-100 150 170 100 1,5 1,5
    BRONZE GRAPHITE BSUHING 150-170-150 150 170 150 1,5 1,5
    BRONZE GRAPHITE BSUHING 160-180-100 150 180 100 1,5 1,5
    BRONZE GRAPHITE BSUHING 160-180-150 150 180 150 1,5 1,5
    BRONZE GRAPHITE BSUHING 160-180-100 160 180 100 1,5 1,5
    BRONZE GRAPHITE BSUHING 160-180-150 160 180 150 1,5 1,5
    Grade 50# 50S1 50S2 50S3 650S5
    Material CuZn25AI5Mn4Fe3 CuSn5Pb5Zn5 CuAI10Ni5Fe5 CuSn12 CuZn25AI5Mn4Fe3
    Density 8 8.9 7.8 8.9 8
    Hardness ≥210 ≥70 ≥150 ≥75 ≥235
    Tensile strength ≥750 ≥250 ≥500 ≥270 ≥800
    Yield strength ≥450 ≥90 ≥260 ≥150 ≥450
    Elongation ≥12 ≥13 ≥10 ≥5 ≥8
    Coefficient o linear expansion 1.9×10-5/℃ 1.8×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃ 1.9×10-5/℃
    Max.Temp. -40~+300℃ -40~+400℃ -40~+400℃ -40~+400℃ -40~+300℃
    Max.dynamic load 100 60 50 70 120
    Max.speed(Dry) 15 10 20 10 15
    N/mm²*m/s(Lubrication) 200 60 60 80 200
    Compression deformation < 0.01 mm < 0.05mm < 0.04mm < 0.05mm < 0.005mm

    Chemical Compositions

    Product NO. Chemical Compositions
    TOB-50 Cu Zn Al Fe Mn Si Ni Sn Pb
    60~66 22~28 5.0~8.0 2.0~4.0 2.5~5.0 <0.1 <0.5 <0.2 <0.2


    Bronze Gleitlager Main Base Alloy

    Material


    CuZn25AI5Mn4Fe3

    Characteristics

    The solid lubricated bearing is a self-lubricated bearing made by inserting into the holes properly arranged and arranged on the friction surface of the metal base of the bearing a shaped solid lubricant with unique self-lubricating properties (the area of the solid lubricant is generally 25%-35% of the friction surface).The bearing combines the advantages of the metal matrix and the special lubricating material, and breaks through the limitation of the general bearing depending on oil film lubrication.JDB solid lubricated bearings are especially suitable for non-oil, high temperature, high load, low speed, anti-fouling, anti-corrosion, anti-radiation, and in the water or vacuum solution infiltration of the special conditions can not be used with lubricating film.The products are widely used in metallurgical rolling equipment, filling equipment, water turbine, gas turbine, instrumentation and mining machinery, ship machinery, textile machinery, shipbuilding industry, aerospace navigation and other fields.At the same time also more and more widely used in other industrial and agricultural machinery.The matrix of JDB solid lubricated bearing shall be determined according to the working conditions of the bearing itself.More commonly used materials are high - strength brass, tin bronze, casting, etc.According to the working conditions of the bearing itself, the combination of different metal matrix and embedded solid lubricant can ensure that the product can meet the special needs of various working conditions such as temperature, load, movement and medium, and at the same time ensure stable and reliable work.
    with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available.


    TOB-50 Solid lubricating bearings

    1. May work without any ol for long period
    2. Extremely high load capacity, good anti-wear and lower friction
    3. Particularly appropriate for low speed and high load
    4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
    5. Good chemical resistant and anti-corrosion characteristics
    6. Can b€ used in wide range of temperature from -40℃-+300℃

    Strusture

    TOB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

    Availability


    Bearing forms available in standard dimensions
    · Cylindrical bushes
    · Flanged bushes
    · Sliding plate

    START YOUR
    PROJECTWITH AN APPLICATION ENGINEER

    Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings

    SOB Series SANKYO Standard Graphite Sleeve Bearings

    Product Tags:

    SANKYO Standard Graphite Sleeve Bearings



    ISO 16949 Graphite Sleeve Bearings


    Quality SOB Series SANKYO Standard Graphite Sleeve Bearings for sale

    SOB Series SANKYO Standard Graphite Sleeve Bearings

    Inquiry Cart 0
    Send your message to this supplier

    *From:
    *To: ZHEJIANG TOP BEARINGS CO., LTD.
    *Subject:
    *Message:
    Characters Remaining: (0/3000)

    Find Similar Products By Category:
    General Mechanical Components
    Hot Searches:

    Friendly Links: www.everychina.com

    Home| Products| Suppliers| Site Map |About Us |Contact Us |Help |关于我们 |联系我们

    Copyright © 2009 - 2025 himfr.com. All rights reserved.

    北京环球广贸软件技术有限责任公司
