ASTM B505 C83600 Bronze Oilless Bearings For Pump Parts & Valve Bodies

Ask Lasest Price
Brand Name :	TOB Brass Bronze Bearings
Model Number :	Groove Patterns, "Spira-Lube" Groove and "Rifle" Groove.Flanged bushings
Certification :	ISO 16949
Price :	negotiated
Payment Terms :	T/T, Western Union
Supply Ability :	negotiated
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

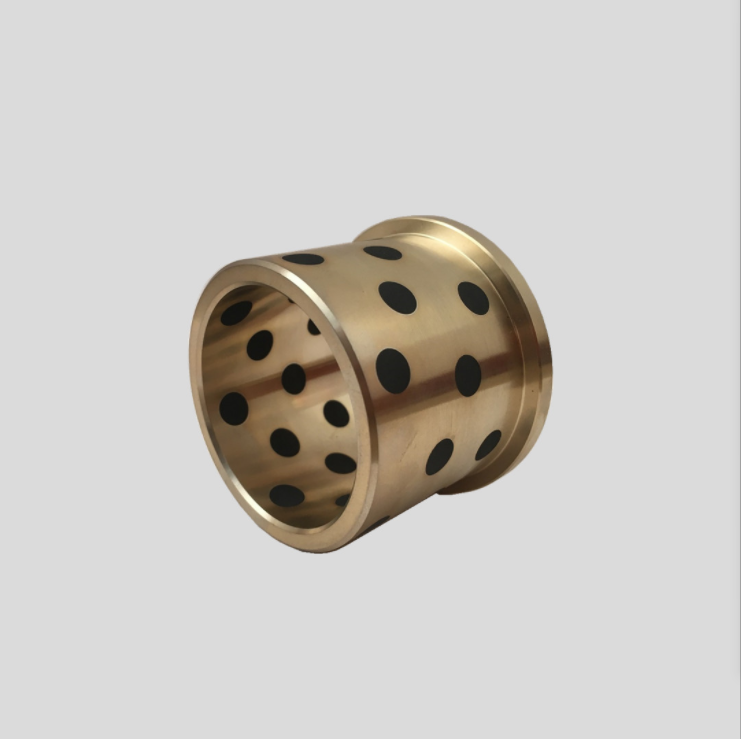

ASTM B505 C83600 Bronze Oilless Bearings For Pump Parts & Valve Bodies

CuSn5ZnPb5-C Bronze Graphite Plugged Bushings Cast Bronze Bearings Material

graphite impregnated bushings

Chemical composition

	% min	% máx
Cu	84.0	86.0
Pb	4.0	6.0
Sn	4.0	6.0
Zn	4.0	6.0
Fe		0.30
Ni		1.0
Al		0.005
Sb		0.25
S		0.08
P		0.05
Si		0.005

Bearings	Corrosion Resistance	Corrosion Resistance
Bearings	Friction & Wear Properties	Wear Resistance
Bearings	Machining Properties	Machinability, Good
Bearings	Mechanical Properties	Moderate Strength
Bushings	Corrosion Resistance	Corrosion Resistance
Bushings	Friction & Wear Properties	Wear Resistance
Bushings	Mechanical Properties	Moderate Strength

Product Tags:

graphite impregnated bronze bushings

graphite filled bronze bushes

Turned Parts and Bearings made from Bronze or Brass

Machined cast bronze bearings offer technically and economically favorable bearings solutions. It is with high load capability, low weight and good corrosion resistance. We can offer different types of bronze alloys according to the required life time, service etc. The tolerance is much tighter than e.g. wrapped bronze bushes.

All these bearings are made to order. Other shapes can be offered. Graphite loaded bearings can withstand very high temperatures up to 425°C (800°F) as well as cryogenic temperatures down to -200°C (-400°F) depending on the bronze material and graphite selected.

Bronze Bearings are widely used in many industrial areas. Such as , machine tools, molds, agriculture and forestry water machinery, etc.
