C83600 Bronze Flange Bearing , Custom Bronze Bushings Stamping Tooling Standard

We can su​pply in a wide range of Oilless Bushes Size,Bronze Bearings Alloys according toSelf-lubricating guide bush without flange

ASTM Standard.Material:CuSn5ZnPb5,CuZn25Al5Mn4Fe3,CuSn10Pb10,CuSn7Zn4Pb7,CuSn8.

Stamping Tooling Standard Parts,Specializing In The Production Of Non-standard C83600 Bronze Graphite Phosphor Bronze Bearings,Graphite Copper Sleeve Special Brass Bushing made to order from china. Solid Self-Lubricating Inlaid BearingThis bearing is a combination of wear resistance and self-lubricating properties of solid copper alloy body of lubricants to use in the process without refueling maintenance...

The product precision is reliable, the size is stable, the type selection is rich, may reduce the mold guide assembly time and the mold manufacture expense!

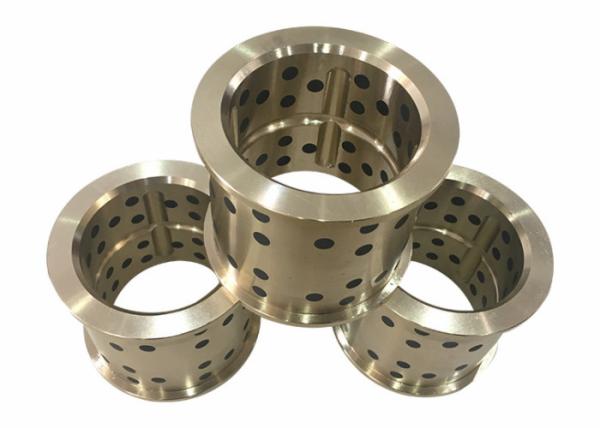

Bronze Flange Bearing Plugged Graphite Features
1. It is widely used in the mold manufacturing industry.
2. The selection of high-quality high strength brass and graphite, so that the guide sleeve in the guide performance of durability greatly enhanced, and has a beautiful metallic luster.
3. After grinding, its toughness, finish and positioning performance are excellent.
4. High dimensional accuracy and stable quality.

Chemical Composition

Feature
Self-lubrication type...With special solid lubricant, will save the trouble for refueling.
(if use early add lubricating oil in advance, more can improve durability.)At 150 ℃ or more solid lubricant oil leakage phenomenon may occur, so please pay attention to control the mold temperature.

Frequently asked questions about this product (FAQ)
1. What is the difference between this guide sleeve and other ordinary guide sleeves in use?
The guide sleeve is used in the same way as other guide sleeves, and the more prominent advantage is that the guide sleeve itself is self-lubricating, so no additional lubricating oil is needed when cooperating with the guide column, while other ordinary guide sleeves need to process oil groove in the hole when cooperating with the guide column.
