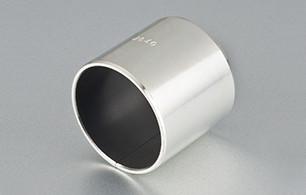

    Metal Tin Plating Self Lubricating Bearings With Inch Sizes

    Ask Lasest Price
    Brand Name : TOB PTFE Self-Lubrication Bearings
    Certification : STEEL BACKED BUSHING, DIN 1494 / ISO 3547, LOW-MAINTENANCE
    Price : negotiated
    Payment Terms : T/T
    Supply Ability : Pump Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
    Delivery Time : negotiated
    • Product Details
    • Company Profile

    Metal Tin Plating Self Lubricating Bearings With Inch Sizes

    Tin Plating Self Lubricating Bearings With Inch Sizes Metal Bush

    Self Lubricating Bearings Sizes And Ordering: Inch Sizes

    Pap Bushing Du Bushing Slitted type, carbon steel Bushes supplier.

    Pap Bushing Du Bushing Slitted type Bearings supply Metal + Sintered Bronze POM sheets. With Steel Backing, Bushings thrust washers and strips - Bearings, csb 50 bushings, Same-Day Shipments
    Metal-polymer bearings DU BUSH WITH BRONZE BACKING for dry and lubricated applications in corrosive environments. Cylindrical & flanged bushes, thrust washers.

    21/8 2.1257 2.1239 2.3118 2.3130 2.1262 2.1326 3 34DU48
    21/4 2.2507 2.2489 2.4365 2.4377 2.2509 2.2573 13/4 36DU28 2 36DU32 21/2 36DU40 3 36DU48 31/2 36DU56 33/4 36DU60 4 36DU64 41/2 36DU72
    21/2 2.5011 2.4993 2.6869 2.6881 2.5013 2.5077 1 40DU16 15/8 40DU26 2 40DU32 21/2 40DU40 3 40DU48 31/2 40DU56 33/4 40DU60 4 40DU64 41/2 40DU72 43/4 40DU76
    23/4 2.7500 2.7482 2.9358 2.9370 2.7502 2.7566 2 44DU32 21/4 44DU36 21/2 44DU40 3 44DU48 31/2 44DU56 33/4 44DU60 4 44DU64 41/2 44DU72 43/4 44DU76 5 44DU80
    27/8 2.8752 2.8734 3.0610 3.0623 2 2 do do 8 7 a 5 9 4 2 46DU32 21/4 46DU36 21/2 46DU40 3 46DU48 31/2 46DU56 33/4 46DU60 4 46DU64 41/2 46DU72 43/4 46DU76 5 46DU80
    3 3.0000 2.9982 3.1858 3.1872 3.0002 3.0068 2 48DU32 21/4 48DU36 21/2 48DU40 3 48DU48 31/2 48DU56 33/4 48DU60 4 48DU64 4S 48DU72 43/4 48DU76 5 48DU80
    31/4 3.2500 3.2480 3.4358 3.4372 3 3 5 5 6 O 8 2 2 52DU32 23/8 52DU38 21/2 52DU40 3 52DU48 31/2 52DU56 33/4 52DU60 4 52DU64 41/2 52DU72 43/4 52DU76 5 52DU80
    31/2 3.5000 3.4978 3.6858 3.6872 3.5002 3.5068 2 56DU32 23/8 56DU38 21/2 56DU40 3 56DU48 31/2 56DU56 33/4 56DU60 4 56DU64 41/2 56DU72 43/4 56DU76 5 56DU80
    35/8 3.6250 3.6228 3.8108 3.8122 3.6252 3.6318 2 58DU32 21/4 58DU36 21/2 58DU40 3 58DU48 31/2 58DU56 33/4 58DU60 4 58DU64 41/2 58DU72 43/4 58DU76 5 58DU80
    33/4 3.7500 3.7478 3.9358 3.9372 3.7502 3.7568 2 60DU32 21/4 60DU36 21/2 60DU40 3 60DU48 31/2 60DU56 33/4 60DU60 4 60DU64 41/2 60DU72 43/4 60DU76 5 60DU80
    4 4.0000 3.9978 4.1858 4.1872 4.0002 4.0068 2 64DU32 21/4 64DU36 21/2 64DU40 3 64DU48 31/2 64DU56 33/4 64DU60 4 64DU64 41/2 64DU72 43/4 64DU76 5 64DU80
    41/4 4.2500 4.2478 4.4358 4.4372 4.2502 4.2568 2 68DU32 21/4 68DU36 21/2 68DU40 3 68DU48 31/2 68DU56 33/4 68DU60 4 68DU64 41/2 68DU72 43/4 68DU76 5 68DU80
    43/8 4.3750 4.3728 4.5608 4.5622 4.3752 4.3818 2 70DU32 21/4 70DU36 21/2 70DU40 3 70DU48 31/2 70DU56 33/4 70DU60 4 70DU64 41/2 70DU72 43/4 70DU76 5 70DU80
    41/2 4.5000 4.4978 4.6858 4.6872 4.5002 4.5068 2 72DU32 21/4 72DU36 21/2 72DU40 3 72DU48 31/2 72DU56 33/4 72DU60 4 72DU64 41/2 72DU72 43/4 72DU76 5 72DU80
    43/4 4.7500 4.7475 4.9358 4.9374 4.7502 4.7572 2 76DU32 21/4 76DU36 21/2 76DU40 3 76DU48 31/2 76DU56 33/4 76DU60 4 76DU64 41/2 76DU72 43/4 76DU76 5 76DU80
    5 4.9986 4.9961 5.1844 5.1860 4.9988 5.0056 2 80DU32 21/4 80DU36 21/2 80DU40 3 80DU48 31/2 80DU56 33/4 80DU60 4 80DU64 41/2 80DU72 43/4 80DU76 5 80DU80
    51/4 5.2500 5.2475 5.4358 5.4374 5.2502 5.2570 2 84DU32 21/4 84DU36 21/2 84DU40 3 84DU48 31/2 84DU56 33/4 84DU60 4 84DU64 41/2 84DU72 43/4 84DU76 5 84DU80
    51/2 5.5000 4.4975 5.6858 5.6874 5.5002 5.5070 2 88DU32 21/4 88DU36 21/2 88DU40 3 88DU48 31/2 88DU56 33/4 88DU60 4 88DU64 41/2 88DU72 43/4 88DU76 5 88DU80
    53/4 5.7500 5.7475 5.9358 5.9374 5.7502 5.7570 2 92DU32 21/4 92DU36 21/2 92DU40 3 92DU48 31/2 92DU56 33/4 92DU60 4 92DU64 41/2 92DU72 43/4 92DU76 5 92DU80
    6 6.0000 5.9975 6.1858 6.1874 6.0002 6.0070 2 96DU32 21/4 96DU36 21/2 96DU40 3 96DU48 31/2 96DU56 33/4 96DU60 4 96DU64 41/2 96DU72 43/4 96DU76 5 96DU80
    61/4 6.2500 6.2475 6.4358 6.4374 6.2502 6.2570 2 100DU32 21/4 100DU36 21/2 100DU40 3 100DU48 31/2 100DU56 33/4 100DU60 4 100DU64 41/2 100DU72 43/4 100DU76 5 100DU80
    61/2 6.5000 6.4975 6.6858 6.6874 6.5002 6.5070 2 104DU32 21/4 104DU36 21/2 104DU40 3 104DU48 31/2 104DU56 33/4 104DU60 4 104DU64 41/2 104DU72 43/4 104DU76 5 104DU80
    63/4 6.7500 6.7475 6.9358 6.9374 6.7502 6.7570 2 108DU32 21/4 108DU36 21/2 108DU40 3 108DU48 31/2 108DU56 33/4 108DU60 4 108DU64 41/2 108DU72 43/4 108DU76 5 108DU80
    7 6.9954 6.9929 7.1812 7.1830 6.9956 7.0026 2 112DU32 21/4 112DU36 21/2 112DU40 3 112DU48 31/2 112DU56 33/4 112DU60 4 112DU64 41/2 112DU72 43/4 112DU76 5 112DU80

    COMPOSITION

    • Metal-Polymer Composite Material
    • Bronze Back + Porous Bronze Sinter +
    • PTFE + Lead

    competitive prices for below bearing bushing products to start our cooperation with you

    Bearing forms available in standard dimensions

    • Cylindrical bushes
    • Flanged bushes
    • Sliding plates

    Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

    Sizes and Ordering: Inch Sizes
    SelbLubricating Bearings
    Garlock Bearings LLC
    Sizes and Ordering: Inch Sizes
    SelbLubricating Bearings
    DUBearings Inch Sizes Over 2"
    Recommended
    Nominal Bearing Installed Shaft Housing Bearing Bearing Length and Part Number Bearing Length and Part Number

    CHARACTERISTICS

    DU BUSH WITH BRONZE BACKING offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

    • Bushing material suitable for lubricated applications

    • Anti-friction bearing suitable for linear, oscillating and rotating movements

    • Approved to standard FAR 25.853 and FAR 25.855 (Federal Aviation Regulations) and ASTM E162:2016 – surface flammability testing for aircraft interior applications

    • Tested acc. to ASTM E595/ECSS-Q-ST-70-02C - Outgassing properties of materials used in Spacecraft equipment

    • Approved to standard DIN EN 1797 and ISO 21010 (Cryogenic Vessels – Gas/Material Compatibility) for piping, valves, fittings and other components in both gaseous and liquid oxygen for up to maximum temperature of 60°C and oxygen pressure of 25 bars. Contact VIIPLUS for further details.
    DU BUSH WITH BRONZE BACKING
    Dry Operation Very Good
    Lubricated Operation Good
    Greased Operation Fair
    Machinable Consult with Applications Engineer
    RoHS Compliant Not compliant
    Standard Sizes Available
    Application Excellence
    DP4®
    Good
    Very Good
    Good
    Consult with Applications Engineer
    Compliant
    Available
    DP10
    Good
    Good
    Fair
    Consult with Applications Engineer
    Compliant
    Not Available

    ADVANTAGES

    Improved energy efficiency with the low friction performance of PTFE-enriched overlay;
    Extended service life with a high wear-resistant bronze layer;
    Zero maintenance as self-lubricating bearings can operate dry without grease;
    Greater reliability than bimetallic bearings by avoiding potential shaft/bearing seizure under boundary lubricated conditions and frequent stop/start operation;
    Compact, lightweight designs with thin-wall bearing construction;
    Reduced noise with no metal-to-metal contact between the bearing and the shaft;
    Quick, simple assembly without expensive mounting tools.

    Usage Range
    dry very good
    oil lubricated good
    grease lubricated fair
    water lubricated good
    process fluid lubricated fair

    Physical & Mechanical Properties
    Items Value Unit
    Thermal Conductivity 18 W/mK
    Maximum Operating Temperature 280 °C
    Minimum Operating Temperature -200 °C
    Compressive Yield Strength 300 N/mm2
    Maximum Static Load 140 N/mm2
    Maximum Dynamic Load 140 N/mm2
    Maximum Sliding Speed -dry 2.5 m/s
    Maximum PV Factor-dry, continuous operation 1.8 N/mm2 * m/s
    Maximum PV Factor-dry, intermittent operation 3.5 N/mm2 * m/s
    Coefficient of friction -dry 0.02-0.25 　
    Coefficient of friction -oil lubricated 0.02-0.12 　
    DU Thrust Washers
    Inch Sizes
    Part Number Inside Dia. +.010 Outside Dia. -.010 Thickness +.0020 Dowel Hole Pitch Dia. Circle Dia. +.010 -.010 Housing Recess Depth +.010
    d D T H P.C. R
    G06DU 0.500 0.875 .0585 .067 0.692 .040
    G07DU 0.562 1.000 .0585 .067 0.786 .040
    G08DU 0.625 1.125 .0585 .099 0.880 .040
    G09DU 0.687 1.187 .0585 .099 0.942 .040
    G10DU 0.750 1.250 .0585 .099 1.005 .040
    G11DU 0.812 1.375 .0585 .099 1.099 .040
    G12DU 0.875 1.500 .0585 .130 1.192 .040
    G13DU 0.937 1.625 .0585 .130 1.286 .040
    G14DU 1.000 1.750 .0585 .130 1.380 .040
    G16DU 1.125 2.000 .0585 .161 1.567 .040
    G18DU 1.250 2.125 .0585 .161 1.692 .040
    G20DU 1.375 2.250 .0585 .161 1.817 .040
    G22DU 1.500 2.500 .0585 .192 2.005 .040
    G24DU 1.625 2.625 .0585 .192 2.130 .040
    G26DU 1.750 2.750 .0585 .192 2.255 .040
    G28DU 2.000 3.000 .0895 .192 2.505 .070
    G30DU 2.125 3.125 .0895 .192 2.630 .070
    G32DU 2.250 3.250 .0895 .192 2.755 .070
    DU Flat Strip Inch Sizes Material
    Usable Approx.
    Group Thickness Width Lbs. Per Ft.
    0 .0276/.0296 45/8 0.50
    1 .0430/.0450 51/8 0.83
    2 .0585/.0605 5 1.06
    3 .0738/.0758 5 1.33
    4 .0895/.0915 5 1.61
    5 .1190/.1210 51/2 2.36
