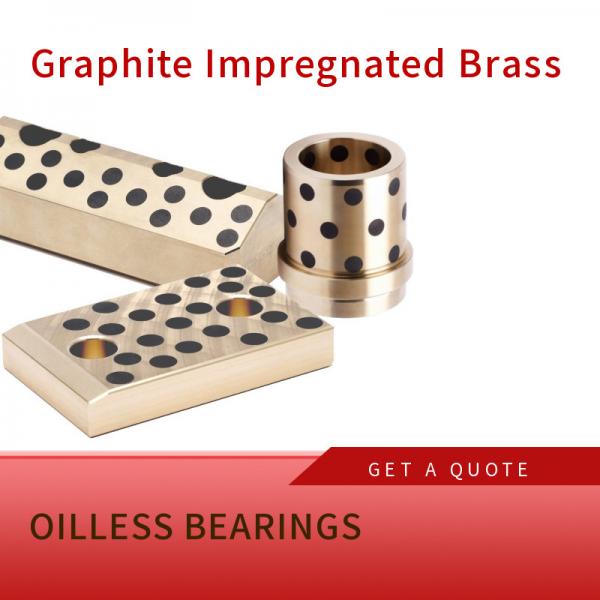

Cast Bronze Straight Type Oilless Bushing 500SP1-SL1 Metal Bush
500SP1-SL1, Oilless Bushing (SPB) (SPB-081208) Straight Type
Wear Plate General Purpose Plate #500SP (SWP) (SWP-75100B)
500SP1-SL1, Bushing (SPB) (SPB-081208) ,The specifications and
dimensions of some parts may not be fully covered. For exact
details, refer to manufacturer catalogs.
dimensions, tolerances, and material specs for the bushing and
solid lubricant.
| Type | Straight Type | Metal Type | High tensile brass based |
|---|
| Operating Environment | Standard / Heat Resistant / Foreign object Resistance | Inner Dia. d(Ø) | 8 |
|---|
| Outer Dia. D(Ø) | 12 | L(mm) | 8 |
|---|
| Maximum Allowable PV Value Range(N/mm2•m/s) | 1.1~2.0 | Maximum Allowable PV Value(N/mm2•m/s) | 1.65 |
|---|
| Maximum Allowable Surface Pressure P(N/mm2) | 29 | Maximum Allowable Velocity V(m/s) | 0.5 |
|---|
| Length Type | Single | Fitting axis | e7 |
|---|
self-lubricating bush material
| Standard No | W | L | Bolt Location | Bolt | Sketch |
| a | b | c | d | Type | Q'ty |
| SOL -20*100 | 20 | 100 | 60 | - | - | - | M8 | 2 | A |
| SOL -20*150 | 150 | 55 | 55 | - | - | 3 |
| SOL -20*200 | 200 | 55 | 50 | 55 | - | 4 |
| SOL -30*100 | 30 | 100 | 60 | - | - | - | M10 | 2 | B |
| SOL -30*150 | 150 | 55 | 55 | - | - | 3 |
| SOL -30*200 | 200 | 55 | 50 | 55 | - | 4 |
| SOL -30*250 | 250 | 70 | 70 | 70 | - | 4 |
| SOL -45*200 | 45 | 200 | 55 | 50 | 55 | - | 4 | C |
| SOL -45*250 | 250 | 70 | 70 | 70 | - | 4 |
| SOL -45*300 | 300 | 65 | 65 | 65 | 65 | 5 |
| SOL -45*350 | 350 | 80 | 75 | 75 | 80 | 5 |
Features
●Self lubricating bearings that can be used oil free.
●Demonstrate high performance at high load/low speed motion.Specification
●Q'ty Per Bag(piece): 1
●Working Temperature Range: -40 to 300°CMaterials
●High-Strength Brass Castings (solid lubricant embedded)Basic Information
Please check the type/dimensions/specifications of the part
SPB-081208 in the #500SP1-SL1, Bushing (SPB) series.
CuZn25Al5Mn4Fe3-C. is a high tensile brass bearings; It is an
extremely hard material, especially suited for machine elements
submitted to the die & mould.
high tensile brass bushing
It is an extremely hard material, especially suited for machine
elements submitted to the highest demands.
The closest international standard is the ASTM B505 C86300
TOP BEARINGS has a large stock of rectangular bars and round solid
and hollow bars with immediate availability.
An overview of the High Tensile Brass Bronze Cuzn25al5mn4fe3 ASTM
B505 C86300 Bushings
A variety of alloys consisting of more than two elements are called
special brasses. Such as aluminum, lead, tin, manganese, nickel,
iron, silicon composed of copper alloy, high force brass is one of
them. High strength brass has strong wear resistance, high strength
brass, hardness, strong chemical corrosion resistance. There are
machining mechanical properties are also very superior. High
strength brass is often used to manufacture sheet, bar, bar, pipe,
casting parts, etc.
Chemical composition
| % min. | % máx |
|---|
| Al | 3,0 | 7,0 |
|---|
| Cu | 60,0 | 67,0 |
|---|
| Fe | 1,5 | 4,0 |
|---|
| Mn | 2,5 | 5,0 |
|---|
| Ni | | 3,0 |
|---|
| Zn | Remainder | |
|---|
| P | | 0,03 |
|---|
| Pb | | 0,2 |
|---|
| Sb | | 0,03 |
|---|
| Si | | 0,1 |
|---|
| Sn | | 0,2 |
|---|
Application domain editor
Colliers brass application is very extensive, the casting made of
bearing and bushing, domestic mainly made of high strength brass for matrix solid lubrication oil-free bearings (hereinafter
referred to as solid embellish bearing), is to use brass Gao Ligao
strength as matrix, and embedded radial arranged orderly
cylindrical polymer filler for friction materials (general
graphite, molybdenum disulfide, ptfe, such as oil lubricant), its
superiority lies in its made of copper alloy and non-metallic
antifriction material has the respective complementary advantages,
not only has high bearing capacity, and break through the
boundaries of generally depends on the oil film bearing grease
lubrication, achieve no oil lubrication, The embedded solid
lubrication is easy to form lubrication film, which plays a great
role in improving the friction and wear performance, and is stable, reliable and cost-effective. Compared with the
composite oil-free bearing, it has the advantages of good
machinability, high precision, strong bearing capacity and good
wear resistance. The self-lubricating guide bush guide can be used
in many fields such as: engineering machinery joints, such as
excavator, mining scraper, the rotating drill, concrete pump truck,
rock drill machine, hoist, port cranes, etc., and metallurgical
machinery casting machinery, water conservancy machinery,
transportation machinery, rolling mill, bottle blowing machine
blown film machine, injection molding machine cross clamping
differential, tire vulcanizer, trailer balance beam, vacuum switch,
etc.
