Jf800 Gunmetal & Bronze Bush Groove Bushing can be produced from an ID of 3mm all the way up to 400mm.
Gunmetal bushes and Gunmetal Bushings bronze bushes INCH SIZE
BEARINGS
Wholesale Customized Oil Groove Brass Shaft Bushing

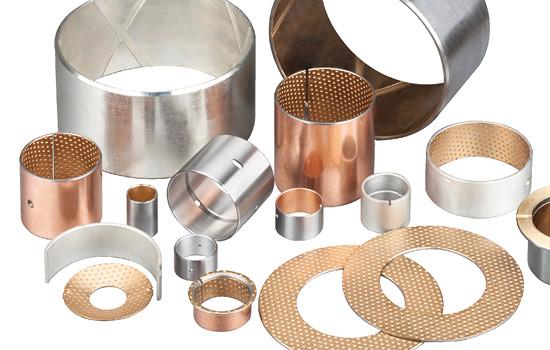

Bimetal Bearings Bushings,Oil Hole Design, Bimetal Cylindrical Bushings, Flange Bearings, Thrust Washer made to order
from china. Material (CuPb10Sn10, SAE-797, JIS-LBC3 Bronze Alloy )
Types of Oil Prockets for bimetal bushings
Oil Holes Form
Diamond Form
Smooth ,No Oil Pocket
| Oil Hole is necessary to design if bimetal bushings have lubricated
sufficiently; the following oil hole design is recommended, which
is also suitable for bimetal series without special requirements. |
| Bushing O.D. (D) | Φ14＞D ≤ 22 | Φ22＞D ≤ 40 | Φ40＞D ≤ 50 | Φ50＞D ≤ 100 | Φ100＞D ≤ 180 |
| Oil Hole Diameter (mm) | 3 | 4 | 5 | 6 | 7 |
| Bimetal Bearings Oil hole location should keep away from the split
gap & loading area, and in favor of oil-taking. |
Bimetallic boundary lubricated bearings,engine bearings, bushes and
Thrust washer manufacturing.
Manufacturer of Self Lubricating Bushing - Self Lubricating
Graphite Bush, Self Lubricating Bimetal Bushings
Bimetallic Material Characteristics
Material (CuPb10Sn10, SAE-797, JIS-LBC3 Bronze Alloy ) CuSn10Pb10
CC495K
| Chemical composition mass /% |
|---|
| Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
| 78.0-82.0 | 9.0-11.0 | 0.01 | 0.25 | 0.2 | 2 | 8.0-11.0 | 0.01 | 0.1 | 2 |
We can produce precise finished parts according to customers'
special requirements and drawings.
Sintered SAE797 Layer + Steel Backing + Copper Plating /
Tin-Plating
JF800 bimetal bearings are steel and copper alloy products with low
carbon steel plate as the matrix material and sintered CuPb10Sn10 or CuSn6Zn6Pb3 on the surface. The bimetlal t is a double alloy bearing bearing
capacity of the strongest one, heavy vehicle balance bridge
bushing, gasket; The slave wheel of a bulldozer; Automotive steel
bushing, all used in this product. It is a widely used high - load
low - speed sliding bearing.
Bimetal Bearing Design
We can design bimetal bearings according to the operating
conditions of copper alloy surface processing of various types of oil tank, oil hole, hole, etc., in order to suit to cannot continue to go hard or go
occasion. Good bonding strength and optimum bearing capacity can be
obtained by secondary sintering and secondary extrusion.
Types of Oil Grooves for bimetal bushings
Types of Butt Jionts for bimetal bushings (Slit & Clinch) Bimetal
Bearings Bushings Buckle Form
Technical Data Of Graphite Bushing Bearings
| Maximum dynamic load | 140P N/mm² | MAX Temperature°C | Grease lubrication | 150°C |
| Maximum linear velocity | Grease lubrication | 2.5Vm/s | Fluid lubrication | 250°C |
| MAX PV | 2.8N/mm². m/s | Match the diameter of axle | HRC | ≥ 53 |
| μ | 0.05~0.15 | Ra | 0.16~0.63 |
| Maximum linear velocity | Fluid lubrication | 10 | Alloy layer hardness | 80~120 |
| MAX PV | 10 | Coefficient of thermal conductivity | 47W/mk |
| μ | 0.04~0.12 | Linear expansion coefficient (axial) | 18×10-6/K |
Thickness Tolerance Between Inner Hole Machining And Non-Machining
For Bimetal Bearings
Norminal Thiickness |
Tolerances of Series B (non-machinable) |
Tolerances of Series C (non-machinable) |
| 1.0 | -0.025 | +0.25
+0.15 |
| 2.0 | -0.030 | +0.25
+0.15 |
| 2.5 | -0.035 | +0.25
+0.15 |
| 3.0 | -0.040 | +0.30
+0.15 |
| 3.5 | -0.045 | +0.30
+0.15 |
| 3.5 | -0.050 | +0.30
+0.15 |
We can solve bimetal bushings bearings solutions for you.
Bi-metallic bushing is formed from steel strips with alloy lining
material. The alloy lined surface can be machined oil grooves,
holes, formed Indentations etc according to different application.
It is suitable for high load, lower speed oscillation & rotation
movement.
