Dryslide bushings

Dry slide bushings have a general structure consisting of a steel substrate connected to a porous bronze agglomeration layer impregnated and coated with a material from a PTFE / lead bearing. Dry sliding plain bearings take advantage of the excellent properties of a dry PTFE bearing and combine them with strength, stability and good wear resistance, excellent thermal conductivity and low thermal expansion.

Basic material / final condition: ST+Stainer bronze + PTFE RED FLANGE bushings, Bundbuchse collared bushings

Butt joint bronze steel backed bush , copper PTFE bushing , Brass made bushing 0810 1825 2020...

Rolled dry sliding bushings ptfe,Metal-Polymer Self-lubricating Bearing Solutions | Hydraulic Components in High Performance Plain Bearing Solutions.Choose from a variety of polymer plain bearings type & Material.Cylindrical bushes Hydraulic Cylinder Bushings Repairs & Components Bushings collar bushes for sale,manufacture of metal-backed bearings.

Characteristics and Advantages

• bushings requires no lubrication

• Provides maintenance free operation

• PTFE has a high pU capability

• Lubricated bushings exhibits low wear rate

• Seizure resistant

• Suitable for temperatures from -200 to +280 °C

• High static and dynamic load capacity

• Good frictional properties with negligible stick-slip

• Resists solvents

• No water absorption and

therefore dimensionally stable

• PTFE BUSHINGS is electrically conductive and shows no electrostatic effects

• SELF-LUBRICATING BEARINGS has good embedability and is tolerant of dusty environments

• Compact and light

• OILLESS bearings are prefinished and require no machining after assembly

DP4 (Material Steel + Bronze + PTFE)

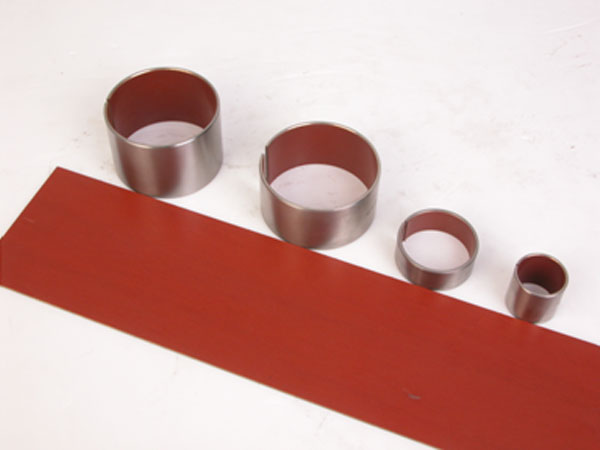

Steel/PTFE composite bearing, in red color PTFE layer

Metal-Polymer Low Friction Plain Bearings Composite Dry Bushing DU Flange Bush .

By working with you early in the design process, TOP BUSHINGS is able to inspect your parts and ensure that the performance and cost-effectiveness of the bearing and surrounding components are optimized.

CHARACTERISTICS

Metal-Polymer Self-lubricating Lead Free Bearing Solutions
TOB-40 similar DP4 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

• • Very good performance in lubricated applications

• • Good performance in greased applications

• • Suitable for linear, oscillating and rotating movements

• • Lead-free material

• • Good frictional properties with negligiblestick-slip

• • High static and dynamic load capacity

• • Suitable for rotating, oscillating,reciprocating and sliding movements

• • Compact size and low weight

• • Prefinished that requires no machining after assembly

• • Possibility to burnish for reduced

Characteristics of Lubricated Bearings
TOB-40 series similarStandard Products

• • DP4 Cylindrical bushes

• • DP4 Flanged bushes

• • DP4 Flanged Washers

• • DP4 Thrust Washers

• • DP4B Cylindrical bushes

• • DP4B Flanged bushes

• • DP4 Strip

• • DP4B Strip

AVAILABILITY

Bearing forms available in standard dimensions

WHAT IS PTFE BUSHINGS?

PTFE-bronze powder-steel is a widely used three-layer self-lubricating bearing material with good anti-friction and anti-wear.

APPLICATION
Given the performance characteristics in both dry and lubricated operating conditions, TOB-40 DP4 and DP4B bearing materials are extensively used in a wide range of automotive and industrial applications, such as:

Automotive
Braking systems, clutches, gearbox and transmissions, hinges - door bonnet and
boot, convertible roof tops, pedal systems, pumps - axial, radial, gear and vane, seat mechanisms, steering systems, struts and shock absorbers, wiper systems.

·Industrial

Aerospace, agricultural, construction equipment, food and beverage, marine, material handling, office equipment, packaging equipment, pneumatic and hydraulic cylinders, railroad and tramways, textile machinery, valves.

du bushing size chart

What is self-lubricating bearing
General profile steel-base oil-free self-lubricated bearing

1. oil-free or less lubricated, can be used without maintenance or less maintenance.

2. Good wear resistance, small friction coefficient and long service life.

3. with appropriate elastoplastic, the stress can be distributed on a wide contact surface to improve the bearing capacity.

4. The coefficient of static and dynamic friction is similar, so as to ensure the working accuracy of the machine.

5. Can make machinery reduce vibration, reduce noise, prevent pollution, improve working conditions.

6. Transfer film can be formed during operation to protect the grinding shaft.

7. The hardness requirement of grinding shaft is low, which reduces the processing difficulty of related parts.

8.Thin wall structure, light weight, can reduce the mechanical volume.

9. steel back can be plated with a variety of metals, can be used in corrosive media;At present, it has been widely used in sliding parts of various machines.

Boundary lubricated bearing series
1. Good load bearing and wear resistance.

2. Suitable for high load and low speed rotating motion, swing motion and often open and close frequently under load and not easy to form hydrodynamic lubrication occasions.

3. Under the condition of boundary lubrication, the bearing can be maintained without oil for a long time, while the bearing's service life can be prolonged by oil adding in the passing layer.

4. The plastic layer on the surface can leave a certain amount of margin during processing and forming, and the assembly can be processed by itself after being pressed into the seat hole to achieve better assembly size.

5. The products are mainly used in automobile chassis, metallurgical machinery, mining machinery, water conservancy machinery, construction machinery, agricultural machinery, steel rolling equipment, etc.

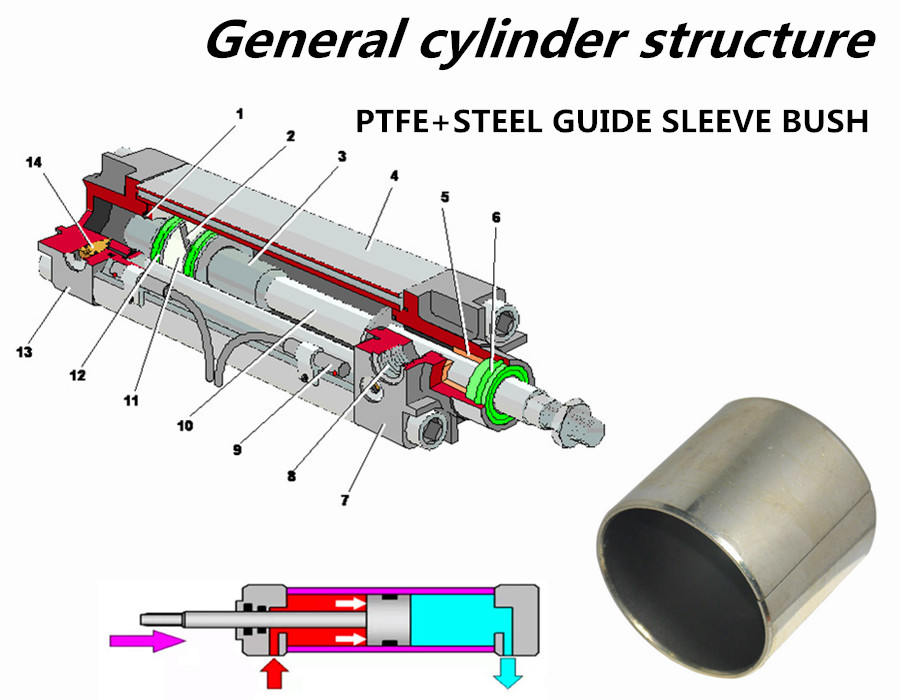

Standard Bushing Parts For Hydraulic Cylinder Repair:
• Inspect / Repair / Replace Bushings As Necessary
• Carbon Steel Is Normally Used As A Backing Material

Other Bushings Application
Typical Applications Include Automotive Vehicles, Farm Equipment, Construction And Material Handling Equipment.

Delivery

We can deliver the cargo to you by following ways:
1. By Courier:
DHL, FEDEX, UPS, TNT, SF EXPRESS
China Post, China Small Package,etc.

2. By Air:
We can deliver to Shanghai,Ningbo etc.

3. By Sea:
Near by ports are Shanghai and Ningbo

Package

Bearing/Busing is covered with polybags in carton and covered by protective film
Outer is wooden carton or pallet
