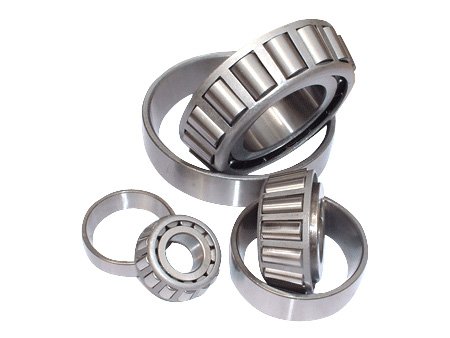

Large Taper Roller Bearings , Large diameter Taper Roller Bearings
, Custom Taper Roller Bearings
Instruction
1. The tapered roller bearing is assembled through a rolling
element. Guided by the sidewall of an inner ring, it can bear
radial load and axial load in one direction.
2. As a kind of thrust bearing, this product is mostly applied in
the car differential, front wheel, rear wheel, machine tool, axle,
construction machinery, various vehicle transmission systems, the
hoisting and conveying machinery, and more.
3. The design of modified line contact between a rolling element
and a raceway allows the load capacity of our four-row bearings to
be effectively enhanced. Rolling mills adopt four-row tapered
roller bearings to accommodate impact loads. Bearing rings are
manufactured from carburizing steel. The use of pin retainers
allows the quantity of rollers to be increased. As a result, rated
load can be increased.
4. The metric and inch bearings have entirely distinct technical
standards. Also, they have different requirements for axles and
bearing boxes. If you have any doubt, please make contact with our
service department.
Structural Diagram
Related Names
Single-Row Tapered Roller Bearing | Bearing For Car Parts |
Construction Machinery Bearing
Parameters
d=15--d=280 2559-2523B---48286-48220B 11590--544091 350305B--352956
48680DW-777752
Feature
These bearings have tapered rollers which are guided by the thicker
side of the cup. The design of the sliding surfaces of the cup and
inner ring and the rolling elements when extended converge towards
the same single point on the bearing axle. bearing tapered
Single-row bearings can carry radial load and axial load in one
direction.
Double-row and four-row taper roller bearings can bear the radial
load and axial load in double directions.
Cages
normally there taper roller bearings use pressed basket-shaped
cages of steel sheet. But for cages with greater machined
dimension, cages are also used.
Taper Roller Bearings manufactures both metric and inch-sized
single row, double-row and four-row taper roller bearings. bearings
tapered, taper bearing, tapered roller bearing, taper roller
bearing, single row tapered bearing, double row tapered bearing,
four row tapered bearing, bearing china tapered, Large Taper roller
bearings, Large diameter Taper roller bearings, Custom Taper roller
bearings, Large size Taper roller bearings
Size Range
| Metric Series | Bore Diameter (mm) |
| 32900 | 10-280 |
| 32000X | 10-260 |
| 30200 | 10-220 |
| 30300 | 10-190 |
| 32200 | 10-220 |
| 32300 | 30-170 |
| 33000 | 10-150 |
| 33100 | 10-120 |
| 33200 | 10-105 |
| 31300 | 10-150 |
| Inch Series | Outside Diameter (mm) |
| 30000R | ≤400 |
|
