Flanged FB090 Plain Bush Bearing CuSn8P With Diamond Or Ball Shape Oil Sockets

Tin-Bronze CuSn8P Wrapped Flanged FB090 Bearings

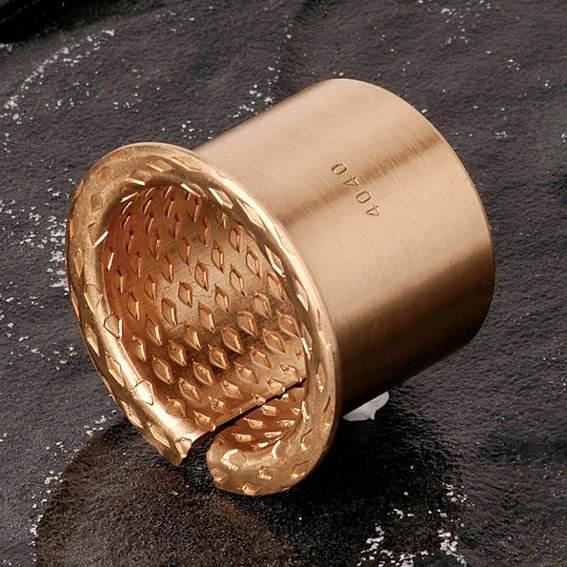

CuSn8P Wrapped Flanged FB090 Bearings is made of Tin-bronze CuSn8P with its surface punched with diamond or ball shape oil sockets which are preserved for oil saving. Tin-Bronze CuSn8P Wrapped Flanged FB090 Bearings are widely applied in conditions of heavier load but low running velocity, such as on agricultural, building and engineering machines, etc.

Tin-Bronze CuSn8P Wrapped Flanged FB090 Bearings has good anti-fatigue and load, anti-erosion and abrasion capacity.

Product NO.	Chemical Compositions
TOB 090	Cu	Sn	P
TOB 090	91.3	8.3	0.2

Physical and Mechanical Performance

Performance Index	Data	Performance Index		Data
Max. Load Pressure	100N/mm²	Mating Axis	Hardness	≥50 HRC
Max. Linear Velocity	2 m/s	Mating Axis	Roughness	Ra=0.4~1.0
Max. PV value	2.8N/mm²·m/s	Max. Working Temperature		150℃
Tensile Strength	460N/mm²	Friction Coefficient		μ 0.05~0.20
Yield Strength	260N/mm²	Heat Conducting Coefficient		58 W/(m*k)
Hardness	HB 90~150	Heat Expansion Coefficient		18.5 10^-6k^-
