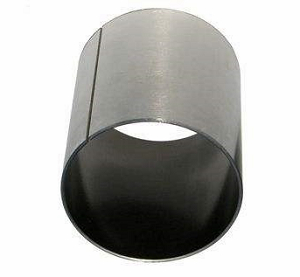

Wrapped Stainless Steel Self Lubricating Bushing DU/DX SF-1 / SF-2
(Oilless Sliding Series)
Stainless Steel Bushing is wrapped by steel backing, Sinter bronze
layer and PTFE antiwar surface.
QS: DIN / JIS / GB
Oilless Slidng Series: DU Bushing
Steel Plate Self-Lubricating Bushing Briefing:
Stainless Steel Bushing /SF-1 Self Lubricating Bushing is wrapped
by steel backing, Sintered bronze inter layer and PTFE antiwar
surface. It is wildly used in hydraulic gear pumps, oil cylinder,
oil Damping bushes and piston rings for automobiles and motorcycles
and textile, food-stuff machines etc.
| Performance | Data |
Load capacity P
(Dry friction) | Static load | 250N/mm2 |
| Dynamic load | 140N/mm2 |
| Max line speed V | Dry friction | 2.5m/s |
| Oil lubrication | 5m/s |
| PV value limit | Dry friction | 3.6N/mm2.m/s |
| Oil lubrication | 50N/mm2.m/s |
| Friction coef u | Dry friction | 0.08~0.20 |
| Oil lubrication | 0.02~0.07 |
| Working temperature | -200oC~+280oC |
| Thermal conductivity | 40W/mk |
| Coefficient of linear expansion | 12*10 -6/K |
Other SF-1 Series Bushing:
SF-1B STEEL PLATE SELF-LUBRICATING BUSHING
It's made of high quality low-carbon steel plate, sintered porous
bronze as its interlayer and the compound of PTFE material and Pb
as its surface. It can offer the properties of good
self-lubricating anti-abrasion, low-friction, fully develop the
advantages of metal and multi-element polymer. It's used in steel
metallurgical industry, such as those used in roller grooves of
successive casting machines, cement grout pump and spiral conveyers
for cement etc.
SF-1S GENERAL-PURPOSE BRONZE PLATE SELF-LUBRICATING BUSHING
the material of this product is based on stainless steel plate with
a sintered porous bronze layer as its interlayer which is coated
with the compound of PTFE on it's surface. It can be used in
neutral acid and strong alkaline. It's used in printing and dyeing
machinery, corrosion resistant place of ocean industry.
SF-1E TYPE STEEL PLATE SELF-LUBRICATING BUSHING (WITHOUT Pb)
It's made of high quality low-carbon steel plate, sintered porous
bronze as its interlayer and the compound of PTFE material and Pb
as its surface. As it is without lead, which makes the bearing
lubricating condition cleaner, and in accordance with environmental
request.It's based on bronze alloy of a particular formulation with
high density with sintered bronze layer as its interlayer, with the
compound of mostly PTFE and other factors. As it is without lead,
which makes the bearing lubricating condition cleaner, and in
accordance with environmental request.
