Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant

Ask Lasest Price
Brand Name :	TOB Wrapped Bronze Bearings
Certification :	ISO 16949
Price :	negotiated
Payment Terms :	T/T
Supply Ability :	negotiated
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant

Gearbox Anti Erosion Wrapped Bronze Bearing With Special Solid Lubricant

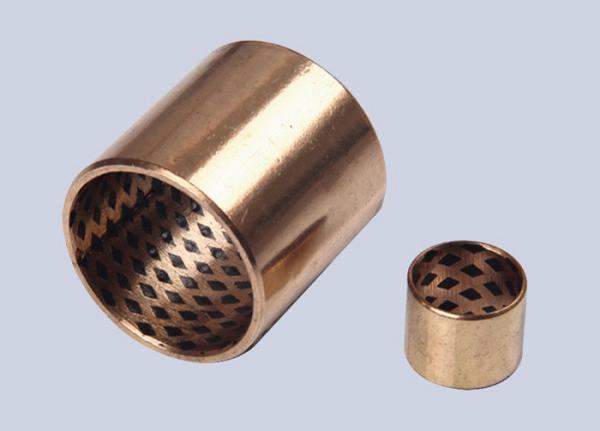

It is made of Tin-bronze CuSn8P that is of high density. Its surface is punched with oil sockets by certain angle and density. There fills with special solid lubricant in the sockets, which endows the products with fairly small friction coefficient. Therefore, it can maintain a good lubrication capability when oil is temporarily run out. In addition, It has good anti-fatigue and load, anti-erosion and abrasion capacity. The products are widely applied in conditions of heavier load but mediate running velocity, such as on engineering machines, gearbox, and clutch on the automotive vehicles, etc.

Product NO.	Chemical Compositions
TOB 093	Cu	Sn	P
TOB 093	91.3	8.3	0.2

Physical and Mechanical Performance

Performance Index	Data	Performance Index		Data
Max. Load Pressure	100N/mm²	Mating Axis	Hardness	≥50 HRC
Max. Linear Velocity	2 m/s	Mating Axis	Roughness	Ra=0.4~1.0
Max. PV value	2.8N/mm²·m/s	Max. Working Temperature		150℃
Tensile Strength	460N/mm²	Friction Coefficient		μ 0.05~0.20
Yield Strength	260N/mm²	Heat Conducting Coefficient		58 W/(m*k)
Hardness	HB 90~150	Heat Expansion Coefficient		18.5 10^-6k^-
