Spherical Plain Bearings Rod End Bearing Maintenance-free Type
Rod end is composed of a standard spherical plain bearing and a rod
body,
it’s available with left or right-hand female (internal) or male
(external) threads.
BRS maintenance-free rod ends have special sliding layers of modern
dry sliding
materials characterised by low friction. They are particular
suitable for applications
where long service lives are required without maintenance.
Specifications & Features
1. Materials: chrome steel, stainless steel and carbon steel
2. Surface treatment: zinc-plated, chrome-plated, nickel and
copper-plated
3. Production range (d): 5 to 35mm in metric or inch sizes both
4. Corrosion-resistant, self-lubricating and high load capacity
Applications:
Engineering hydraulic cylinder, forming machine tools, engineering
machinery,
automation equipment, automobile shock absorber, water conservancy
machinery industry,
textile machinery, military machinery, etc.

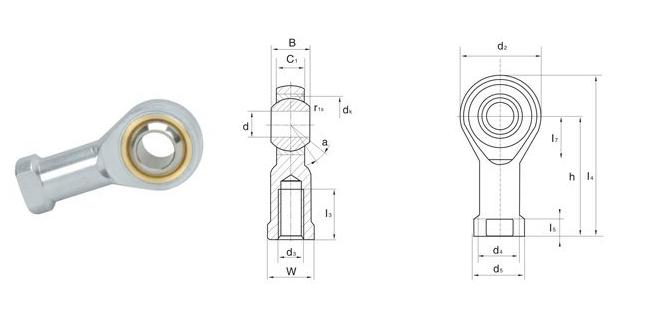

| Model | Dimension (mm) | Loading Rating
(KN) | Weight (kg) | | d | d2 | B | C1 | W | d3 | d4 | d5 | L1 | L2 | L | L3 | d1 | α°
≈ | Dynamic | Static | | SI5T/K | 5 | 18 | 8 | 6 | 9 | M5X0.8 | 9 | 11 | 27 | 10 | 36 | 4.5 | 7.7 | 13 | 6 | 7.5 | 0.018 | | SI6T/K | 6 | 20 | 9 | 6.75 | 11 | M6X1 | 10 | 13 | 30 | 12 | 40 | 5 | 8.9 | 13 | 7.2 | 9.3 | 0.027 | | SI8T/K | 8 | 24 | 12 | 9 | 13 | M8X1.25 | 12.5 | 16 | 36 | 16 | 48 | 5 | 10.4 | 14 | 11.6 | 16.7 | 0.046 | | SI10T/K | 10 | 28 | 14 | 10.5 | 17 | M10X1.5 | 15 | 19 | 43 | 20 | 57 | 6.5 | 12.9 | 13 | 14.5 | 23.4 | 0.076 | | SI12T/K | 12 | 32 | 16 | 12 | 19 | M12X1.75 | 17.5 | 22 | 50 | 22 | 66 | 6.5 | 15.4 | 13 | 17 | 32 | 0.115 | | SI14T/K | 14 | 36 | 19 | 13.5 | 22 | M14X2 | 20 | 25 | 57 | 25 | 75 | 8 | 16.8 | 16 | 24 | 41.9 | 0.170 | | SI16T/K | 16 | 42 | 21 | 15 | 22 | M16X2 | 22 | 27 | 64 | 28 | 85 | 8 | 19.3 | 15 | 28.5 | 52.7 | 0.230 | | SI18T/K | 18 | 46 | 23 | 16.5 | 27 | M18X5 | 25 | 31 | 71 | 32 | 94 | 10 | 21.8 | 15 | 35 | 63.8 | 0.320 | | SI20T/K | 20 | 50 | 25 | 18 | 32 | M20X1.5 | 27.5 | 34 | 77 | 33 | 102 | 10 | 24.3 | 14 | 40 | 78.1 | 0.415 | | SI22T/K | 22 | 54 | 28 | 20 | 32 | M22X5 | 30 | 37 | 84 | 37 | 111 | 10 | 25.8 | 15 | 52 | 97.2 | 0.540 | | SI25T/K | 25 | 60 | 31 | 22 | 36 | M24X2 | 33.5 | 42 | 94 | 42 | 124 | 12 | 29.6 | 15 | 60 | 122.1 | 0.750 | | SI30T/K | 30 | 70 | 37 | 25 | 41 | M30X2 | 40 | 51 | 110 | 51 | 145 | 15 | 34.8 | 15 | 81 | 168.4 | 1.130 | | SI35T/K | 35 | 80 | 43 | 28 | 50 | M36X2 | 46 | 56 | 125 | 56 | 165 | 15 | 37.7 | 17 | 100 | 205.7 | 1.600 |
| | | |
| Model | Dimension (mm) | Loading Rating
(KN) | Weight (kg) |
| d | d2 | B | C1 | d3 | h | L1 | L2 | L | d1 | α°
≈ | Dynamic | Static |
| SA5T/K | 5 | 18 | 8 | 6 | M5X0.8 | 33 | 33 | 19 | 42 | 7.7 | 13 | 4 | 7.5 | 0.013 |
| SA6T/K | 6 | 20 | 9 | 6.75 | M6X1 | 36 | 36 | 22 | 46 | 8.9 | 13 | 4.4 | 9.3 | 0.020 |
| SA8T/K | 8 | 24 | 12 | 9 | M8X1.25 | 42 | 42 | 25 | 54 | 10.4 | 14 | 8 | 16.7 | 0.033 |
| SA10T/K | 10 | 28 | 14 | 10.5 | M10X1.5 | 48 | 48 | 29 | 62 | 12.9 | 13 | 12.9 | 23.4 | 0.056 |
| SA12T/K | 12 | 32 | 16 | 12 | M12X1.75 | 54 | 54 | 33 | 70 | 15.4 | 13 | 17 | 32 | 0.087 |
| SA14T/K | 14 | 36 | 19 | 13.5 | M14X2 | 60 | 60 | 38 | 78 | 16.8 | 16 | 24 | 41.9 | 0.129 |
| SA16T/K | 16 | 42 | 21 | 15 | M16X2 | 66 | 66 | 40 | 87 | 19.3 | 15 | 28.5 | 52.7 | 0.189 |
| SA18T/K | 18 | 46 | 23 | 16.5 | M18X1.5 | 72 | 72 | 44 | 95 | 21.8 | 15 | 35 | 63.8 | 0.267 |
| SA20T/K | 20 | 50 | 25 | 18 | M20X1.5 | 78 | 78 | 47 | 103 | 24.3 | 14 | 40 | 78.1 | 0.348 |
| SA22T/K | 22 | 54 | 28 | 20 | M22X1.5 | 84 | 84 | 51 | 111 | 25.8 | 15 | 52 | 97.2 | 0.443 |
| SA25T/K | 25 | 60 | 31 | 22 | M24X2 | 94 | 94 | 58 | 124 | 29.6 | 15 | 60 | 122.1 | 0.600 |
| SA30T/K | 30 | 70 | 37 | 25 | M30X2 | 110 | 110 | 71 | 145 | 34.8 | 15 | 81 | 168.4 | 1.030 |
| SA35T/K | 35 | 80 | 43 | 28 | M36X2 | 125 | 125 | 77 | 165 | 37.7 | 17 | 100 | 205.7 | 1.600
|
