    High Precision Plain Spherical Bearing Rod Ends Ball Bearing

    High Precision Rod End Plain Spherical Bearing Superior sealing performance

    Description:

    Rod ends are primarily intended for radial loads acting in the direction of the shank axis. If, in
    addition to the radial load, an axial load resulting from angular misalignment or additional axial forces acts on the rod end, the equivalent dynamic bearing load should be calculated in the same way as for radial spherical plain bearings.
    The second step is to check that the calculated dynamic load P does not exceed the maximum permissible load Pperm for the rod end. The maximum permissible load depends on the basic static load rating C0 as well as on the type of load (constant, varying in magnitude, or alternating). This applies not only to loads acting on the rod end in the direction of the shank axis, but also to loads acting at right angles to the axis. If loads act at right angles to the shank axis, the maximum permissible load will be reduced as additional bending stresses occur in the shank. When checking, consideration should also be paid to the rod end head (housing) material which differs depending on design and size (automatic or forged steel, cast iron with spheroidal graphite).

    Features and Applications:
    Features:
    1) Supreme load capacity and accuracy
    2) Rational self-aligning mechanism and optimal fit
    3) Superior sealing performance
    4) Simple lubrication
    5) Highly rigid and rugged cast iron housings
    6) Simple installation and handling

    Applications:
    1)Agriculture,
    2)Light textile,
    3)Mining,
    4)Food &beverage,
    5)Pharmaceutical,
    6)Chemical processing,
    7)Printing,
    8)Dyeing,
    9)Airport,
    10)Air-conditioning,
    11)Various kinds of conveying and rolling devices.


    Basic Info.

    Structure: Rod End

    Load Direction: Thrust Spherical Plain Bearing


    Add Lubricant: Self-lubricating

    Outer Structure: Double Slit Outer Ring (Outer Ring Subdivision)


    Rod End: Rod End

    Export Markets: Global

    Additional Info.

    Trademark: NSK, KOYO, SKF, TIMKEN, ASAHI


    Packing: Standard Export Package

    Standard: Different Type


    Origin: German, USA, China, Japan

    Production Capacity: 500, 000

    Product Description

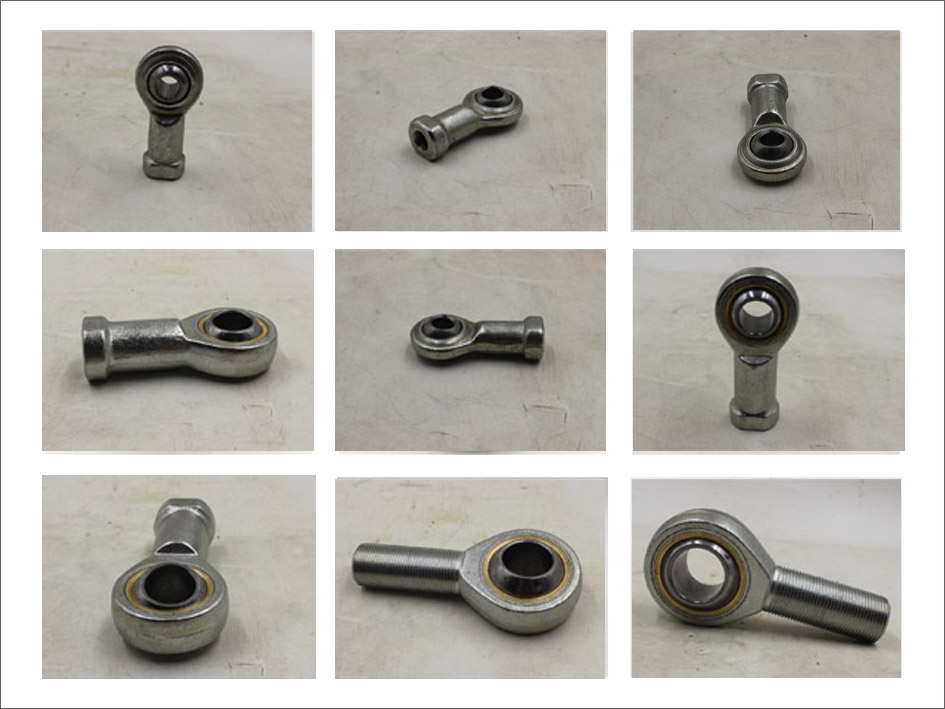

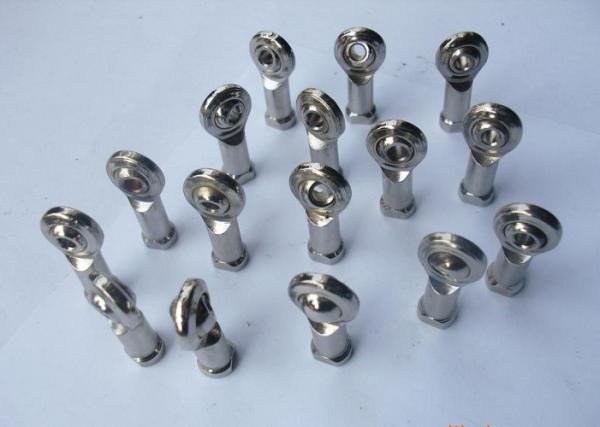

    Rod end Bearings

    POS POS...EC Series
    PHS PHS...EC Series
    SA...T/K Series
    SI/TK Series
    POSB Series
    PHSB Series
    These are quite common series,

    CM/CMT series
    CF/CFT series
    XM/XF series
    These series are our new products they are used quite common in racing car.

    Chrome steel or stainless steel and Metric series and Inch series are available.
    And we also can offer the products according to your drawings.

    Additional Info.

    Trademark: lbs.

    Packing: As requirement

    HS Code: 848210090

    Production Capacity: 50000 PCS per Month


    Product Description
    Precision Rating: P0 P4 P5 P6
    material: carbon steel; bearing steel
    Brand Name: KOYO, NACHI, NSK, NTN, SKF
    Service: OEM or as your demand
    Package: standard packaging or as customer's request
    Sample: free provide
    Delivery Detail: within 3-5 days after your payment

    Specifications
    joint bearing
    1. High quality
    2. Low noise
    3. Low friction
    4. high precision

    Name: oscillating bearing rod end bearing, rod end joint bearing

    1. Typical Features
    High carrying capacity and rigidity
    High precision, good stability
    Long service life, low noise

    2. Wide Applications
    Our joint bearings are particularly suitable for hydraulic engineering, metal forming machine tools, engineering machinery.

    3. Wide varieties
    We can serve you with joint bearings of different sizes as long as the ID is over 80mm and OD is less than 800mm.

    4. Strict inspection system and perfect after sales services
    we have extremely strict inspection system in order to meet the top quality requirement. We also put great emphasis on the after sales services. Our knowledgeable engineers are ready to give any technical consultation for our customers. We will keep any possible quality trouble far away from you.


    Tolerances for Rod ends

    1> The tolerance of △dmp and △Bs of GIR…DO,GAR..DO,GIR…UK, GAR…UK, GIR..UK-2RS,GAR…UK-2RS and GIHR…DO,
      GIHR-K…DO, GIHO-K…DO, GK…DO, GF…DO, GIR..UK-2RS,GAR…UK-2RS are the same as radial spherical plain bearings
      GE...E,GE...ES,GE…UK,GE…UK-2RS.
      2> The △dmp and △Bs of GIHN-K…LO, GF…LO are the same as radial spherical plain bearings GE…LO.
      3> The △dmp and △Bs of SIBP...S,SABP...S,SIZP...S,SAZP...S,SAZJ...-and SAZJ... are the same as radial spherical plain bearings GEBK...S.
      4> Series CHS..., COS…

    d mm△ dmp um△ Bs um
    overincl.maxminmaxmin
    -61200-150
    6101500-150
    10121800-150
    12181800-200
    18302100-200



    BBB> Center height deviation

    d mm△ hs mm△ h1s mm
    overincl.maxminmaxmin
    -60.8-1.20.65-1.05
    6200.8-1.20.8-1.2
    20301-1.71-1.7
    30451.4-2.11.4-2.4
    45601.8-2.71.8-2.7
    60802.25-3.42.25-3.4
    801252.7-3.42.7-3.4
    1252003.2-4.23.2-4.2
    Radial internal clearance of rod ends

    1> GIR…DO,GAR…DO, GIHR…DO,GIHR-K…DO, GIHO-K…DO, GK…DO, GF…DO,GIHN-K…LO, GF…LO
    Series GIR…DO,GAR…DO, GIHR…DO,GIHR-K…DO, GIHO-K…DO, GK…DO, GF…DO,GIHN-K…LO, GF…LO

    d mmGroup normal um
    overincl.minmax
    -122368
    12203082
    203537100
    356043120
    609055142
    9012565165
    12520065192


    2> GIR…UK,GAR…UK, GIR...UK-2RS, GAR…UK-2RS
    Series GIR…UK,GAR…UK, GIR...UK-2RS, GAR…UK-2RS

    d mm Group normal um
    overincl.minmax
    -12032
    1220040
    2035050
    3560060
    6080072


    3> SIZJ...,SAZJ...
    Series SIZJ...,SAZJ...

    d mmGroup normal um
    overincl.minmax
    -81030
    8141560
    14204080

    Fits of rod ends

    AAA> Shaft fits

    Operating conditionsTolerance
    With indeterminate loadsn6, p6
    Normsa conditionsh6, h7


    BBB> thread

    Male threadFemale thread
    6g6h
    UNF-2AUNF-2B


    CCC> shaft diameter tolerances

    shaft diameter mmshaft diameter tolerances um
    h6H7n6p6
    overincl.HighlowHighlowHighlowHighlow
    360-80-121682012
    6100-90-1519102415
    10180-110-1823122918
    18300-130-2128153522
    30500-160-2533174226
    50800-190-3039205132
    801200-220-3545235937
    1201800-250-4052276843
    1802000-290-4660317950
