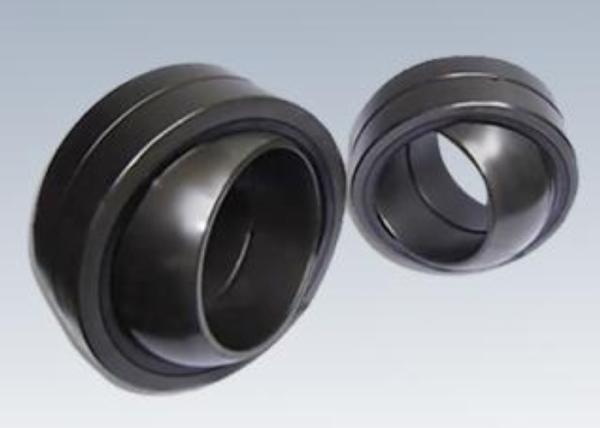

Chrome Steel Radial Spherical Plain Bearing, C3 C4 C5 plain
bearings
Quick Detail:
Long Life Radial Spherical Plain Bearing GEG60ES / GEG60ES-2RS with
chrome bearing steel
Type: Radial spherical plain bearing
Precision Rating: P0.P6.P5
Material: Chrome Steel
Clearance: C2 C0 C3 C4 C5 as your required
Vibration Level: V1, V2, V3, V4 as your required
Noise rank: Z1, Z2, Z3, Z4
Place of Origin: China (Mainland)
Service: OEM service, customer design service and Buyer label
service
Certificate: ISO9001:2008
Description:
| Bearing No. | Boundary dimensions(mm) | Mass |
| d | D | B | C | dk | rs | r1s | α° | Kg |
| min | min | ≈ | ≈ |
| GEG60ES | GEG60ES-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 2.05 |
Specifications:
· GEG…E Series
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high
chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched
(hardened), surface phosphatized.
4) Features of structure: Without oil groove or oil holes, with an
axial split in outer race.
5) Lubricant: molybdenum disulfide.
6) Properties: Good wear ability, corrosion resistance,
self-alignment.
· GEG…ES Series
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high
chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched
(hardened), surface phosphatized.
4) Features of structure: With oil groove and oil holes, with an
axial split in outer race.
5) Lubricant: molybdenum disulfide.
6) Properties: Good wear ability, corrosion resistance, and
self-alignment.
· GEG…ES 2RS Series
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high
chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched
(hardened), surface phosphatized.
4) Features of structure: With oil groove and oil holes, with an
axial split in outer race with dual seals.
5) Lubricant: molybdenum disulfide.
6) Properties: Good wear ability, corrosion resistance,
self-alignment, dust proof.
Applications:
Bearings are widely used in hydraulic engineering, metal forming
machine, construction machinery, automation equipment, automotive
shock absorber, water machinery.
Competitive Advantage:
1. High speed, High Precision, Low Noise, Long Service Life
2. Customers' drawing or samples accepted
3. Heavy radial loads and high speeds
4. Less vibration and noise
5. Small order accepted and sample accepted
6. Can withstand a little axial load if outer ring and inner ring
have ribs
Other Sizes Available:
| Bearing No. | Boundary dimensions(mm) | Mass |
| d | D | B | C | dk | rs | r1s | α° | Kg |
| min | min | ≈ | ≈ |
| GEG4E | 4 | 14 | 7 | 4 | 10 | 0.3 | 0.3 | 20 | 0.005 |
| GEG5E | 5 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 21 | 0.008 |
| GEG6E | 6 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 21 | 0.006 |
| GEG8E | 8 | 19 | 11 | 6 | 16 | 0.3 | 0.3 | 21 | 0.014 |
| GEG10E | 10 | 22 | 12 | 7 | 18 | 0.3 | 0.3 | 18 | 0.021 |
| GEG12E | 12 | 26 | 15 | 9 | 22 | 0.3 | 0.3 | 18 | 0.033 |
| GEG15ES | GEG15ES-2RS | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 0.049 |
| GEG17ES | GEG17ES-2RS | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 0.083 |
| GEG20ES | GEG20ES-2RS | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.6 | 17 | 0.153 |
| GEG25ES | GEG25ES-2RS | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 0.203 |
| GEG30ES | GEG30ES-2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 0.304 |
| GEG35ES | GEG35ES-2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 0.408 |
| GEG40ES | GEG40ES-2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 0.542 |
| GEG45ES | GEG45ES-2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 0.713 |
| GEG50ES | GEG50ES-2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 1.14 |
| GEG60ES | GEG60ES-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 2.05 |
| GEG70ES | GEG70ES-2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 3.01 |
| GEG80ES | GEG80ES-2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 3.64 |
| GEG90ES | GEG90ES-2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 5.22 |
| GEG100ES | GEG100ES-2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 6.05 |
| GEG110ES | GEG110ES-2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 9.68 |
| GEG120ES | GEG120ES-2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 14.01 |
| GEG140ES | GEG140ES-2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 19.01 |
| GEG160ES | GEG160ES-2RS | 160 | 260 | 135 | 80 | 225 | 1.1 | 1.1 | 16 | 20.02 |
| GEG180ES | GEG180ES-2RS | 180 | 290 | 155 | 100 | 250 | 1.1 | 1.1 | 14 | 32.21 |
| GEG200ES | GEG200ES-2RS | 200 | 320 | 165 | 100 | 275 | 1.1 | 1.1 | 15 | 45.28 |
| GEG220ES | GEG220ES-2RS | 220 | 340 | 175 | 100 | 300 | 1.1 | 1.1 | 16 | 51.12 |
| GEG240ES | GEG240ES-2RS | 240 | 370 | 190 | 110 | 325 | 1.1 | 1.1 | 15 | 65.12 |
| GEG260ES | GEG260ES-2RS | 260 | 400 | 205 | 120 | 350 | 1.1 | 1.1 | 15 | 82.44 |
| GEG280ES | GEG280ES-2RS | 280 | 430 | 210 | 120 | 375 | 1.1 | 1.1 | 15 | 97.21 |
