Deep Groove double row ball bearing With Snap Ring Groove / Steel Sheet Or Brass Cages

Ask Lasest Price
Brand Name :	TOB Deep Groove Ball Bearings
Certification :	ISO 16949
Price :	negotiated
Payment Terms :	T/T
Supply Ability :	negotiated
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

Deep Groove double row ball bearing With Snap Ring Groove / Steel Sheet Or Brass Cages

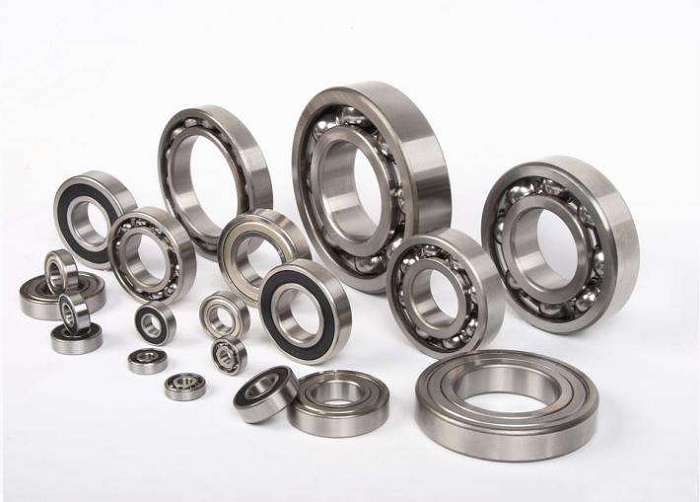

Deep groove ball bearing with snap ring groove

Product Description

Feature

They are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.

Cages
Deep groove ball bearings generally use pressed cages of steel sheet or brass cages. When the outer diameter is less than (inclusive) 400mm,

They use pressed cage with steel sheet. When the outer diameter is bigger than 400mm, they use brass cages.

Applications
can be found in automobiles, machine tools, motors, instruments, construct machines, railway vehicles, agricultural machines and various other Special machines

Types

Basic type, With snap ring groove on the outer ring (-N), With one shield (-Z) on one side or two shields (-2Z) on both sides, With one seal (-RS) on one side or two seals (-2RS) on both sides.

The original code	modern number	Basic size				Installation size			Weight
The original code	modern number	d	D	B	rsmin	Dsmin	dhmax	Rmax	Weight
200	6200	10	30	9	0.6	14	26	0.6	0.0277
201	6201	12	32	10	0.6	16	28	0.6	0.0365
202	6202	15	35	11	0.6	19	31	0.6	0.0431
203K	6203	17	40	12	0.6	21	36	0.6	0.0661
	6204	20	47	14	1	25	42	1	0.110
204A	6204TNI		47	14	1	25	42	1	0.104
	6304X3/C3		62	16	1	28	54	1	0.252
	63/22/C3	22	56	16	1.1	29	47	1	0.183
	66/23/P53YB2	23	56	15	1	29	47	1	0.131
	66/23/P53Z2		56	15	1	29	47	1	0.125
1000905	61905	25	42	9	0.3	27	40	0.3	0.0415
105	6005		47	12	0.6	29	43	0.6	0.078
	16005		47	8	0.3	27	45	0.3	0.0562
205	6205		52	15	1	30	47	1	0.134
205A	6205TNI		52	15	1	30	47	1	0.126
	6305		62	17	1.1	31.5	55.5	1	0.214
	6305X3/C3YA5		68	18	1.1	33	62	1	0.296
405	6405		80	21	1.5	33	72	1.5	0.530
	6605X2WBTN1/HA	26	68	19.5	2	33	61	2	0.272
	63/28/HA	28	68	18	1.1	34.5	61.5	1	0.299
1000906	61906	30	47	9	0.3	32	45	0.3	0.0433
	1-0005		59	22	0.4	33	55	0.4	0.191
206	6206		62	16	1	35	57	1	0.218
306K	6306		72	19	1.1	36.5	65.5	1	0.354
	6406		90	23	1.5	38	82	1.5	0.805
	6007	35	62	14	1	40	57	1	0.148
	6207		72	17	1.1	41.5	65.5	1	0.284
307K	6307		80	21	1.5	43	72	1.5	0.456
307A	6307TNI		80	21	1.5	43	72	1.5	0.443
307U			80	21	1.5	43	72	1.5	0.481
407	6407		100	25	1.5	43	92	1.5	0.919
	6008/C3	40	68	15	1	44.6	63.4	1	0.191
208K	6208		80	18	1.1	46.5	73.5	1	0.361
	6208/HAP6		80	18	1.1	46.5	73.5	1	0.361
	6208/P5YB2		80	18	1.1	46.5	73.5	1	0.361
	370208		80	18	1.1	46.5	73.5	1	0.362
	6308/P5YB2		90	23	1.5	48	82	1.5	0.642
308	6308		90	23	1.5	48	82	1.5	0.642
308A	6308TN1		90	23	1.5	48	82	1.5	0.611
	6308/HA		90	23	1.5	48	82	1.5	0.642
408K	6408		110	27	2	49	101	2	1.20
	62/41/HAP53	41	80	17	1.1	46.5	73.5	1	0.342
	6009	45	75	16	1	50	70	1	0.246
209	6209		85	19	1.1	51.5	78.5	1	0.428

The original code	modern number	Basic size				Installation size			Weight
The original code	modern number	d	D	B	rsmin	Dsmin	dhmax	Rmax	Weight
	6209TN1	45	85	19	1.1	51.5	78.5	1	0.416
	6209K		85	19	1.1	51.5	78.5	1	0.419
	6209MA		85	19	1.1	51.5	78.5	1	0.492
	209		85	19	1.1	51.5	78.5	1	0.492
309Y	6309/YB5		100	25	1.5	53	92	1.5	0.850
	6309/HAC3V2YA7		100	25	1.5	53	92	1.5	0.807
309U2			100	25	1.5	53	92	1.5	0.850
309HU			100	25	1.5	53	92	1.5	1.05
	6309A		100	25	1.5	53	92	1.5	0.859
309	6309		100	25	1.5	53	92	1.5	0.850
	6309TN1		100	25	1.5	53	92	1.5	0.811
409K	6409		120	29	2	54	111	2	1.69
	6010	50	80	16	1	55	75	1	0.248
	6210/HA		90	20	1.1	56.5	83.5	1	0.504
	6210/C9YA6		90	20	1.1	56.5	83.5	1	0.474
	6210		90	20	1.1	56.5	83.5	1	0.504
310	6310		110	27	2	59	101	2	1.07
	6310A		110	27	2	59	101	2	1.12
	6310TN1		110	27	2	59	101	2	0.998
	6310TN11		110	27	2	59	101	2	0.998
810	810		111	27	2.3	61	101	2	1.10
410K	6410		130	31	2.1	61	119	2	1.85
7000111		55	90	11	0.6	59	85	0.6	0.307
	6011		90	18	1.1	61	84	1	0.384
	6211K		100	21	1.5	63	92	1.5	0.620
211K	6211		100	21	1.5	63	92	1.5	0.605
311K	6311		120	29	2	64	111	2	1.39
	6311TN1		120	29	2	64	111	2	1.31
411K	6411		140	33	2.1	66	129	2	2.31
112	6012	60	95	18	1.1	66.5	88.5	1	0.426
	6012M		95	18	1.1	66.5	88.5	1	0.497
212K1	6212		110	22	1.5	68	102	1.5	0.793
212			110	22	1.5	68	102	1.5	0.793
212U			110	22	1.5	68	102	1.5	0.793
212U1			110	22	1.5	68	102	1.5	0.793
	6212/YA5		110	22	1.5	68	102	1.5	0.772
	6212K		110	22	1.5	68	102	1.5	0.781
	6312A		130	31	2.1	71	119	2	1.75
312Q	6312		130	31	2.1	71	119	2	1.71
	6312Q1		130	31	2.1	71	119	2	2.07
412K	6312TN1		130	31	2.1	71	119	2	1.64
	6412		150	35	2.1	71	139	2	2.78
1000913	61913	65	90	13	1	70	85	1	0.203
	6013		100	18	1.1	71.5	93.5	1	0.428
	6013M		100	18	1.1	71.5	93.5	1	0.553
213	6213		120	23	1.5	73	112	1.5	0.973
	6213MA		120	23	1.5	73	112	1.5	1.23
	6213A		120	23	1.5	73	112	1.5	1.00
213G	213G		120	23	1.5	73	112	1.5	1.01
180213	180213		120	23	1.5	73	112	1.5	1.06
313	6313		140	33	2.1	76	129	2	2.10
	6313A		140	33	2.1	76	129	2	1.85
	6313/YA6		140	33	2.5	76	129	2.5	2.09
	6313M		140	33	2.1	76	129	2	2.10

original code	modern number	Basic size				Installation size			Weight
original code	modern number	d	D	B	rsmin	Dsmin	dhmax	Rmax	Weight
	6413	65	160	37	2.1	76	149	2	3.25
	6014	70	110	20	1.1	76.5	103.5	1	0.620
	6014M		110	20	1.1	76.5	103.5	1	0.757
	6214		125	24	1.5	78	117	1.5	1.34
	6214A		125	24	1.5	78	117	1.5	1.12
	6314A		150	35	2.1	81	139	2	2.60
	6314/P6CMV2		150	35	2.1	81	139	2	2.55
314U1			150	35	2.1	81	139	2	2.55
314	6314		150	35	2.1	81	139	2	2.55
	6314/C9		150	35	2.1	81	139	2	2.55
	6314/YA6		150	35	2.1	81	139	2	2.55
	6314TN1		150	35	2.1	81	139	2	2.46
	6414		180	42	3	83	167	2.5	4.73
	60/72	72	110	20	1.1	77	105	1	0.584
	6015	75	115	20	1.1	81.5	108.5	1	0.630
	6015M		115	20	1.1	81.5	108.5	1	0.804
7000115	16015		115	13	0.6	81.5	108.5	1	0.583
215	6215		130	25	1.5	83	122	1.5	1.16
	6215A		130	25	1.5	83	122	1.5	1.21
215H	6215M		130	25	1.5	83	122	1.5	1.45
210215	6215K		130	25	1.5	83	122	1.5	1.16
315	6315		160	37	2.1	86	149	2	3.10
	6315A		160	37	2.1	86	149	2	3.03
315U1			160	37	2.1	86	149	2	3.02
315K	6315/YA8		160	37	2.1	86	149	2	3.03
	6315M		160	37	2.1	86	149	2	3.77
	6415		190	45	3	88	177	2.5	5.57
1000916K	61916	80	110	16	1	85	105	1	0.350
	6016		125	22	1.1	86.5	118.5	1	0.860
	16016		125	14	0.6	84	121	0.6	0.599
	6016M		125	22	1.1	86.5	118.5	1	1.08
	6216A		140	26	2	89	131	2	1.47
216K	6216		140	26	2	89	131	2	1.43
316K	6316		170	39	2.1	91	159	2	3.64
	6316M/HQ1		170	39	2.1	91	159	2	4.54
	6316A		170	39	2.1	91	159	2	3.68
	6416		200	48	3	93	187	2.5	6.63
	61917	85	120	18	1.1	91	114	1	0.557
	16017		130	14	0.6	89	126	0.6	0.636
	6017		130	22	1.1	91.5	123.5	1	0.935
	6017M		130	22	1.1	91.5	123.5	1	1.12
217K	6217		150	28	2	94	141	2	1.80
	6217K		150	28	2	94	141	2	1.81
	6217A		150	28	2	94	141	2	1.85
	6217/HA		150	28	2	94	141	2	1.80
	6217M		150	28	2	94	141	2	1.91
317	6317		180	41	3	98	167	2.5	4.33
	6317/P6CMV2		180	41	3	98	167	2.5	4.33
	6317M		180	41	3	98	167	2.5	4.97
317U1			180	41	3	98	167	2.5	4.33
417K	6417		210	52	4	101	194	3	8.12
1000918K	61918	90	125	18	1.1	96.5	118.5	1	0.572

original code	modern number	Basic size				Installation size			Weight
original code	modern number	d	D	B	rsmin	Dsmin	dhmax	Rmax	Weight
1000918	61918M	90	125	18	1.1	96.5	118.5	1	0.680
	6018		140	24	1.5	98	132	1.5	1.16
	16018M		140	16	1	95	135	1	0.941
	6018M		140	24	1.5	98	132	1.5	1.39
218	6218		160	30	2	99	151	2	2.19
218U1			160	30	2	99	151	2	2.19
318K	6318		190	43	3	103	177	2.5	4.97
	6318/CM		190	43	3	103	177	2.5	4.97
	6318M/C4		190	43	3	103	177	2.5	6.37
318Y	6318/YA6		190	43	5.5	103	177	2.5	4.97
	6418		225	54	4	106	209	3	9.47
	16019	95	145	16	1	100	140	1	0.884
	6019		145	24	1.5	103	137	1.5	1.14
219	6219		170	32	2.1	106	159	2	2.61
	6219M		170	32	2.1	106	159	2	3.26
319K	6319		200	45	3	108	187	2.5	5.65
	6319/CM		200	45	3	108	187	2.5	5.58
	6319A		200	45	3	108	187	2.5	5.84
	6319F1/HQ1		200	45	3	108	187	2.5	6.93
	6319M/HQ1		200	45	3	108	187	2.5	7.11
	6419M		240	55	4	108	215	2.5	13.4
	61920M	100	140	20	1.1	106.5	133.5	1	0.960
	61920		140	20	1.1	106.5	133.5	1	0.850
	16020		150	16	1	108	142	1	0.916
	6020		150	24	1.5	108	142	1.5	1.17
	6020M		150	24	1.5	108	142	1.5	1.40
720	720		180	28	1.8	111.5	171.5	1.8	2.70
220K	6220		180	34	2.1	111	169	2	3.20
320K	6320		215	47	3	113	202	2.5	7.01
	6320A		215	47	3	113	202	2.5	7.10
	6320M		215	47	3	113	202	2.5	8.94
	6320MA		215	47	3	113	202	2.5	9.28
320K1	6320/YA8		215	47	3	113	202	2.5	7.11
420K	6420		250	58	4	116	234	3	12.8
	6420M		250	58	4	116	234	3	15.4
	6021	105	160	26	2	114	151	2	1.62
	6021A		160	26	2	114	151	2	1.65
	6021M		160	26	2	114	151	2	1.92
721	721		180	22	1.1	113.5	173.5	1	2.61
211K	6221		190	36	2.1	116	179	2	3.66
	6321		225	49	3	118	212	2.5	7.84
1000822	61822	110	140	16	1	115	135	1	0.505
1000922	61922		150	20	1.1	116.5	143.5	1	0.888
	61922M		150	20	1.1	116.5	143.5	1	1.01
	16022		170	19	1	115	165	1	1.48
	6022		170	28	2	119	161	2	2.09
	6022M		170	28	2	119	161	2	2.72
122HY	6022M/YB5		170	28	2	119	161	2	2.71
222K	6222		200	38	2.1	121	189	2	4.29
	6222M		200	38	2.1	121	189	2	5.46
322	6322		240	50	3	123	227	2.5	9.49
	6322A		240	50	3	123	227	2.5	9.72
	6322M		240	50	3	123	227	2.5	11.8
422K	6422		280	65	4	126	264	3	18.3
