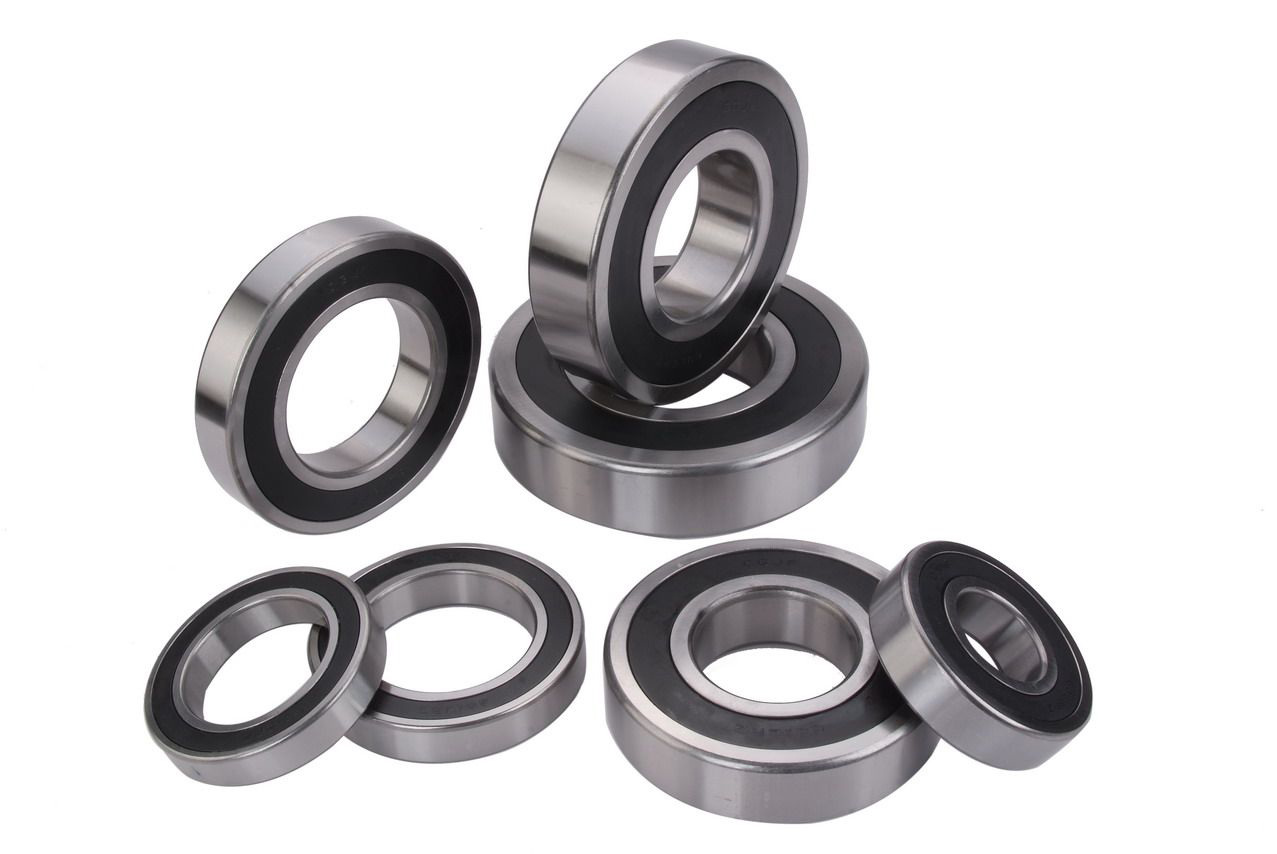

Deep Groove Ball Bearing 6205
Quick Details
| Structure: Deep Groove | Type: Ball | Brand Name: MADE IN CHINA |
| Bore Size: 25 mm | Outside Diameter: 52 mm | Model Number: 6205 |
| Precision Rating: P0/P1/P2/P5/P6 | Seals Type: open/ZZ/2RS | Number of Row: Single Row |
| Place of Origin: China (Mainland) | Color: Silvery white | |
Packaging & Delivery
| Packaging Detail: | According to customer`s requirement |
| Delivery Detail: | 7--45days |
Specifications
The advantage of our bearings:
1.ISO 9001:2008
2.R&D capability
3.High precision and durability
4.Well performance
Deep Groove Ball Bearings are the most popular of all the ball
bearing types because they are available in a wide variety of seal,
shield and snap-ring arrangements. The bearing ring grooves are
circular arcs made slightly larger than the radius of the ball. The
balls make point contact with the raceways (elliptical contact when
loaded). The inner ring shoulders are of equal height (as the outer
ring shoulders).
Deep Groove ball bearings can sustain radial, axial, or composite
loads and because of simple design, this bearing type can be
produced to provide both high-running accuracy and high-speed
operation. Consequently, they are available in many executions and
sizes.
Deep groove ball bearing have various types in structure, beside
open type bearings, shield or seals at both side can also be
provided
Deep groove ball bearings are non-separable and require little
attention or maintenance in service, capable of operating at high
speeds and are widely used radial bearings. The inner and outer
ring of single row deep groove ball bearings have a deep groove
raceway, the bearings are mainly used to carry radial loads and a
part of axial loads in two directions. This kind of bearing can
carry much heavy axial loads after the increase of radial
clearance, thus, it can take the place of high speed angular
contact ball bearings.
for shaft diameter
in mm
160 15 - 380
42..-B 10 - 90
43..-B 15 - 60
60 7 - 360
618 45 - 850
619 40 - 80
62 3 - 280
622..-2RSR 10 - 50
63 4 - 240
623..-2RSR 15 - 50
64 17 - 90
S60 10 - 60
S60..-2RSR 10 - 50
S62 10 - 60
S62..-2RSR 10 - 45
S63 10 - 45
S63..-2RSR 10 - 50
