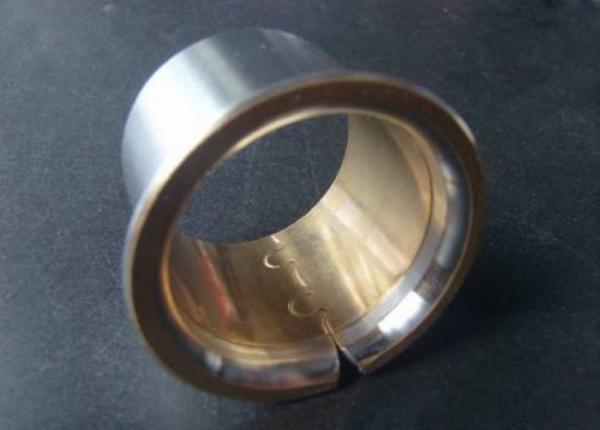

Main Shaft Bi Metal Bearings CuSn4Pb24 / Steel Flange Bearing

Bimetal Bearings with Flange , Low Carbon Steel Wth CuSn4Pb24

CuSn4Pb24 Bimetal Flange Bearings is backed with high quality low carbon steel with Tin-Lead-Bronze alloy (CuSn4Pb24) sintered on its surface.

CuSn4Pb24 Bimetal Flange Bearings is with very high fatigue-resistance, load capacity, impact ability, and corrosion-resistance.CuSn4Pb24 Bimetal Flange Bearings is widely used in main shaft and con rod shaft of internal combustion engine with heavy duty capacity and high speed.

To effectively decrease abrasion, CuSn4Pb24 Bimetal Flange Bearings' alloy surface can be machined with oil grooves for easier oil storage. When necessary, an erosion protection coating can be plated on the steel back. In common application.

CuSn4Pb24 Bimetal Flange Bearings is widely used in main shaft and con rod shaft of internal combustion engine with heavy duty capacity and high speed.

Physical and Mechanical Performance

Performance Index		Data	Performance Index		Data
Max. Load		130N/mm²	Mating Axis	Hardness	≥48 HRC
Linear Velocity	Grease Lubrication	2.5 m/s		Roughness	Ra=0.16~0.63
	Oil Lubrication	10 m/s	Max. Working Temperature	Grease Lubrication	150℃
Max. PV value	Grease Lubrication	2.8N/mm²·m/s		Oil Lubrication	250℃
	Oil Lubrication	10N/mm²·m/s	Friction Coefficient		0.05~0.15
Anti-tensile Strength		150 N/mm²	Heat-conducting Coefficient		60 W/(m*k)
Alloy hardness		HB 45-70	Heat-expansion Coefficient		19*10^-6k

Alloy Chemical Compositions

Content	Cu	Pb	Sn	Zn	P	Fe	Ni	Sb	Others
Content	Remainder	9-11	9-11	0.5	0.1	0.7	0.5	0.2	0.5
