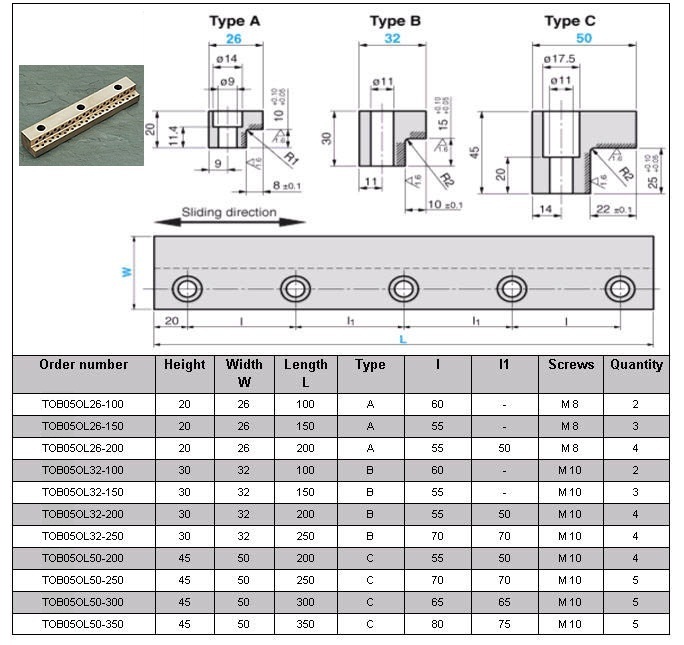

Strengthening Brass With Solid Lubricant Casting Bronze Slide Block
JDB Slide Block is backed with strengthening brass that has good physical
performance and good capability for casting.
Bronze based and processed by turning technics. There can be made
oil grooves on the inner surface and outside surface to reach a
better lubricating effect.
Both vertical and horizontal direction of motion direction.
By made mid-sized holes in order and then insert the solid
lubricant into the holes in the bronze bushing to apply the
bushings under oil-free conditions.
Strengthening Brass + Solid Lubricant Slide Block is widely used on consecutive casting and rolling machines,
mine-exploiting equipment, ships, steam engine, etc.
What’s more, the brass backing has pretty good anti-erosion ability
in air, fresh water and seawater. The surface is regularly and
finely machined with sockets in which particular solid lubricant is
filled.
OILES 500# Slide Block can be used with rotary, reciprocating
shaking motion and movement.
Chemical Compositions
| Product NO. | Chemical Compositions |
| TOB 050 | Cu | Zn | Al | Fe | Mn | Si | Ni | Sn | Pb |
| 60~66 | 22~28 | 5.0~8.0 | 2.0~4.0 | 2.5~5.0 | <0.1 | <0.5 | <0.2 | <0.2 |
Physical and Mechanical Performance
| Performance Index | Data | Performance Index | Data |
| Density | g/cm³ | 8.2 | Hardness | HB | ≥210 |
| Linear Expansion Coefficient | 10^-5/℃ | 1.6-2.0 | Flexibility Coefficient | KN/mm² | 120-140 |
| Heat-conducting Coefficient | W/(m·k) | 38-55 | Tensility | % | ≥12 |
| Tensile Strength | N/mm² | ≥755 | Friction | Oil Lubrication | μ | 0.03 |
| Anti-compact Tenacity | ≥KJ/m^3 | 400-500 | Dry Friction | 0.16 |
Application Condition Limits
| Lubrication Conditions | Non- Lubrication | Periodical Lubrication | Consecutive Lubrication |
| Working Temperature Limits | ℃ | -40~+300 | -40~+150 | -40~+150 |
| Max. Load pressure | N/mm² | 100 | 100 | 100 |
| Max. Linear Velocity | m/s | 0.50 | 1.00 | 1.50 |
| Max. PV Value | N/mm²·m/s | 1.65 | 3.25 | 3.25 |
