Casting Copper bearing thrust washer With Solid Lubricant Plugs

Ask Lasest Price
Brand Name :	TOB Casting Bronze Bearings
Certification :	ISO 16949
Price :	negotiated
Payment Terms :	T/T
Supply Ability :	negotiated
Delivery Time :	negotiated

Add to Cart

Product Details
Company Profile

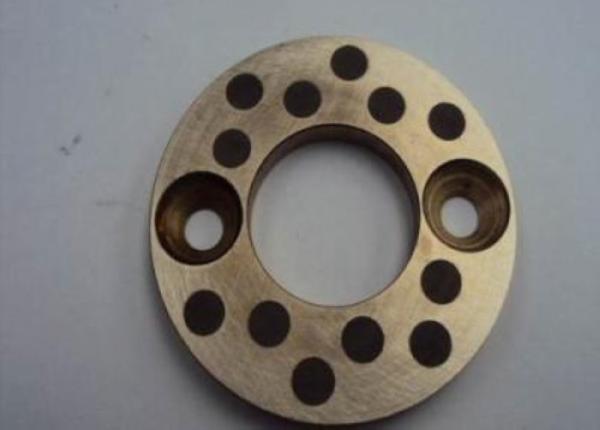

Casting Copper bearing thrust washer With Solid Lubricant Plugs

Strengthening Copper With Solid Lubricant Plugs Casting Bronze Thrust Washer

OILES 500# Thrust Washer is backed with strengthening copper that has good physical performance and good capability for casting.

JDB Copper Bearings is a special formulation of high strength copper-based body surface at a certain angle and density of embedded solid lubricant specially formulated by precision machining.

OILES 500# Thrust Washer is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, etc.

By made mid-sized holes in order and then insert the solid lubricant into the holes in the Copper bushing to apply the bushings under oil-free conditions.

What’s more, the Copper backing has pretty good anti-erosion ability in air, fresh water and seawater. The surface is regularly and finely machined with sockets in which particular solid lubricant plugs is filled.

OILES 500# Thrust Washer can be used with rotary, reciprocating shaking motion and movement.

Chemical Compositions

Product NO.	Chemical Compositions
TOB 050	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
TOB 050	60~66	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2

Physical and Mechanical Performance

Performance Index		Data	Performance Index			Data
Density	g/cm³	8.2	Hardness		HB	≥210
Linear Expansion Coefficient	10^-5/℃	1.6-2.0	Flexibility Coefficient		KN/mm²	120-140
Heat-conducting Coefficient	W/(m·k)	38-55	Tensility		%	≥12
Tensile Strength	N/mm²	≥755	Friction	Oil Lubrication	μ	0.03
Anti-compact Tenacity	≥KJ/m^3	400-500	Friction	Dry Friction	μ	0.16

Application Condition Limits

Lubrication Conditions		Non- Lubrication	Periodical Lubrication	Consecutive Lubrication
Working Temperature Limits	℃	-40~+300	-40~+150	-40~+150
Max. Load pressure	N/mm²	100	100	100
Max. Linear Velocity	m/s	0.50	1.00	1.50
Max. PV Value	N/mm²·m/s	1.65	3.25	3.25
