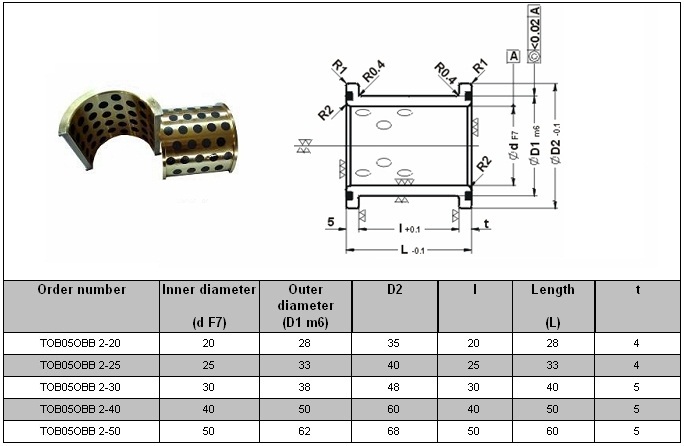

Tin-Bronze With Solid Lubricant Casting Bronze Bearings with Flange
Tin-Bronze With Solid Lubricant Casting Bronze Bearings with Flange
is backed with Tin-Bronze. The surface is regularly and finely
machined with sockets in which particular solid lubricant is
filled.
Embedded in the falnge part because there is no lubricant, not
axial load.
JDB Bearings Bronze based and processed by turning technics. There
can be made oil grooves on the inner surface and outside surface to
reach a better lubricating effect.
Diamater 31.5mm-63mm hydraulic cylinder is put on the intermediate
shaft using fresh products.
JDB Bearings with Flange is widely used on the anti-abrasion and
anti-erosion parts, which work in conditions with heavier load and
mediate running velocity.
For instance, on light industrial machines, machine tools, moving
belt in the drying machine, door of the fireplace, on no oil parts
on the building, metallurgy and transportation machines, etc.
Avoid use in seawater.
Chemical Compositions
| Product NO. | Chemical Compositions |
| TOB 052 | Cu | Sn | Pb | Zn | Al Si | S | Fe | P | Ni | Sb |
| 83~88 | 4.0~6.0 | 4.0~6.0 | 4.0~6.0 | <0.01 | <1.0 | <0.3 | <0.1 | <2.0 | <0.2 |
Physical and Mechanical Performance
| Performance Index | Data | Performance Index | Data |
| Density | g/cm³ | 8.7 | Hardness | HB | ≥60 |
| Linear Expansion Coefficient | 10^-5/℃ | 1.6-1.8 | Flexibility Coefficient | KN/mm² | 85-115 |
| Heat-conducting Coefficient | W/(m·k) | 46-63 | Tensility | % | ≥15 |
| Tensile Strength | N/mm² | ≥240 | Friction | Oil Lubrication | μ | 0.03 |
| Anti-compact Tenacity | ≥KJ/m^3 | 100-200 | Dry Friction | 0.16 |
Application Condition Limits
| Lubrication Conditions | Non- Lubrication | Periodical Lubrication | Consecutive Lubrication |
| Working Temperature Limits | ℃ | -40~+300 | -40~+150 | -40~+150 |
| Max. Load pressure | N/mm² | 40 | 40 | 40 |
| Max. Linear Velocity | m/s | 0.40 | 0.85 | 1.00 |
| Max. PV Value | N/mm²·m/s | 1.00 | 1.65 | 2.00 |
